wireSENSOR MT

Worldwide smallest draw-wire sensor

Draw-wire sensors for high speed measurements

Miniature MP and MT draw-wire sensors are designed for measurement tasks with fast wire movements. Their robust aluminum housing makes the sensors suitable for industrial applications. The MP and MT draw-wire sensors are equipped with a potentiometer.

Miniature draw-wire sensors

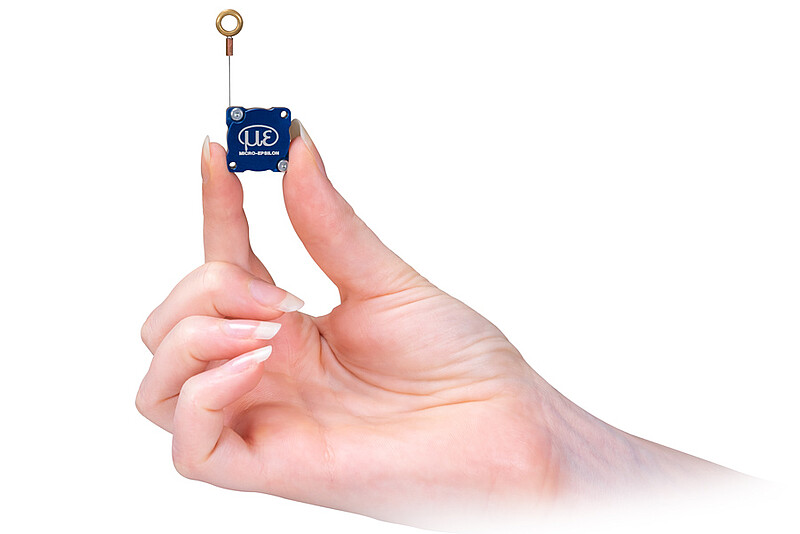

Miniature MT draw-wire sensors are the smallest draw-wire sensors worldwide. They are designed specifically for test applications where high wire accelerations occur such as crash tests. Their miniature design enables installation into very small spaces. Through-bores in the housing support easy, fast mounting.

Characteristics
  1. Measuring ranges (mm): 40 | 80 | 130
  2. Linearity ±0.4% FSO
  3. Output: potentiometer
  4. Easy and flexible mounting
  5. For fast accelerations up to 60 g
  6. Worldwide smallest design

Miniature draw-wire sensors

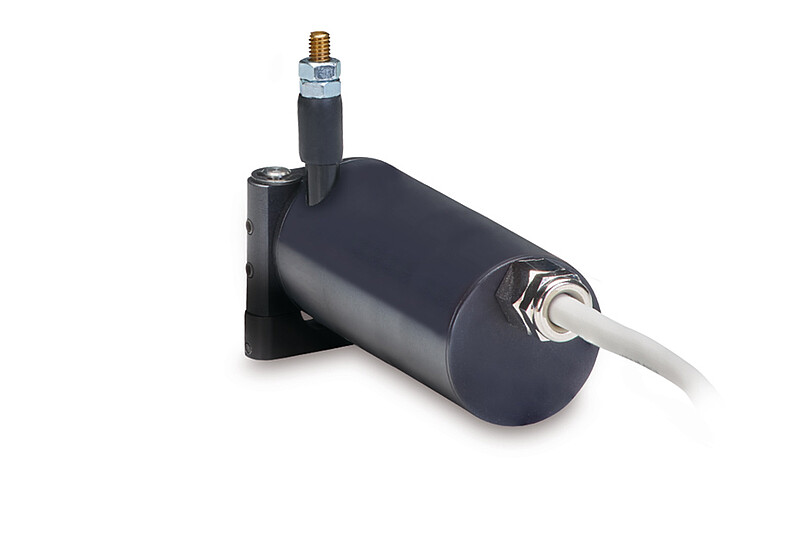

MPM draw-wire sensors combine miniaturized components and high-resolution precision hybrid potentiometers. They are preferably used in applications characterized by fast movements, short distances and confined spaces.

Characteristics
  1. Measuring ranges (mm): 50 | 150 | 250
  2. Linearity ± 0.2 % FSO
  3. Output: potentiometer
  4. Miniature draw-wire sensor
  5. Flexible mounting
  6. For fast movements up to 100 g

Miniature draw-wire sensors

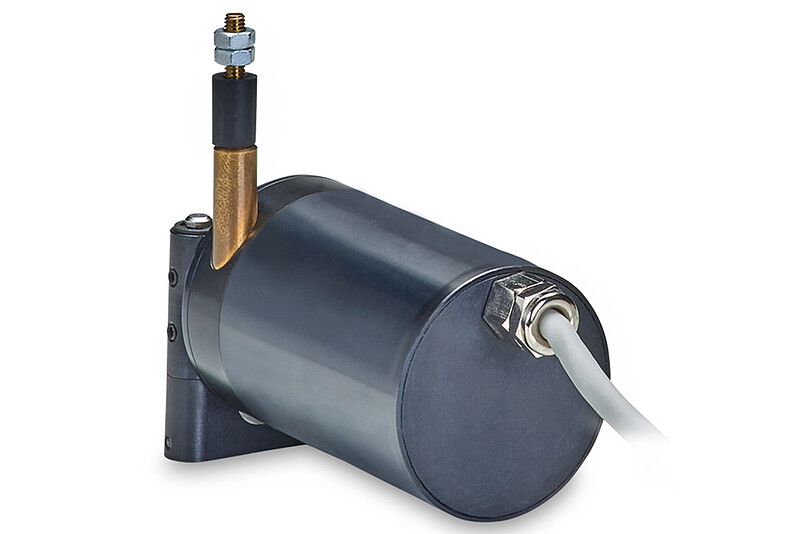

The MP/MPW draw-wire sensors are designed both for industrial use as well as for mobile applications. These draw-wire displacement sensors are the preferred choice where mid-size displacements must be measured under limited space conditions. The MPW series (waterproof) is particularly suitable for applications in harsh ambient conditions.

Characteristics
  1. Measuring ranges (mm): 100 | 300 | 500 | 1,000
  2. Linearity ± 0.1 % FSO
  3. Output: potentiometer
  4. Miniature design
  5. MPW = waterproof version
  6. For extremely harsh environments
  7. Medium measuring ranges

Interface and signal processing units
