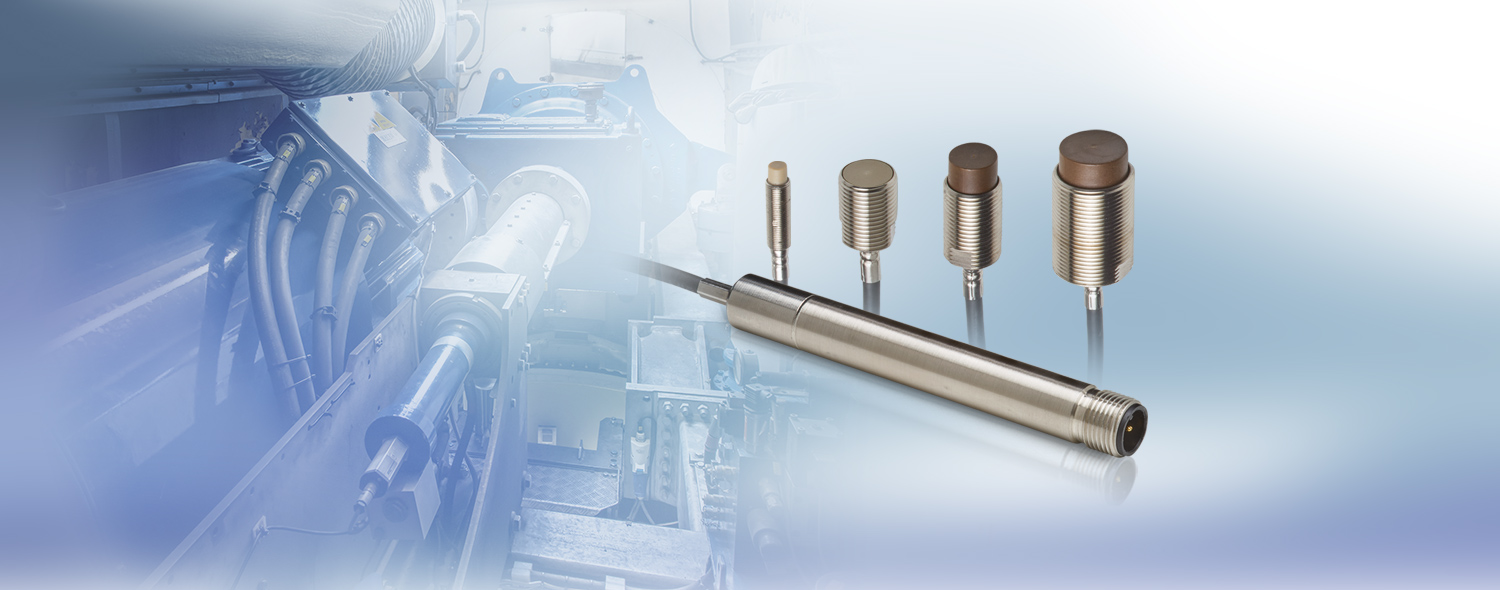

eddyNCDT 3005

Robust and compact design in IP67

Compact, inductive displacement measuring system for serial applications

The eddyNCDT 3005 is a compact inductive measuring system (eddy current) for precise displacement and position measurements. The system comprises a robust controller, a sensor and an integrated cable and is factory-calibrated either for ferromagnetic or non-ferromagnetic materials.

logo

Characteristics

  1. Ideal for integration into plant and machinery
  2. Robust and compact design to IP67
  3. High pressure resistance
  4. Easy to use
  5. Active temperature compensation up to +180°C
  6. Measuring range 1 | 2 | 3 | 6 mm
  7. Resolution max. 0.5µm
  8. High frequency response
[]
Contact
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Compact measurement system for the industry

As the sensor and controller of the eddyNCDT 3005 series are temperature-compensated, high measurement accuracies are achieved even in fluctuating temperatures. The sensors are designed for ambient temperatures up to a maximum of +125°C but can be custom engineered for temperatures up to +180°C. The complete measurement system is pressure-resistant up to 10 bar and so is ideally suited to machine integration.

logo

Ideal for integration into plant and machinery

The eddyNCDT 3005 provides ease of use and high measurement accuracy, offering an outstanding price/performance ratio. The sensor is therefore ideal for OEM integration and machine building applications, particularly where pressure, dirt, oil and high temperatures are present. When larger numbers of pieces are required, customer-specific designs can be tailored to suit individual requirements.
