Flexible sensor concept, ideal for serial applications and OEM


Linear output signal


Ideal alternative to switches and proximity sensors

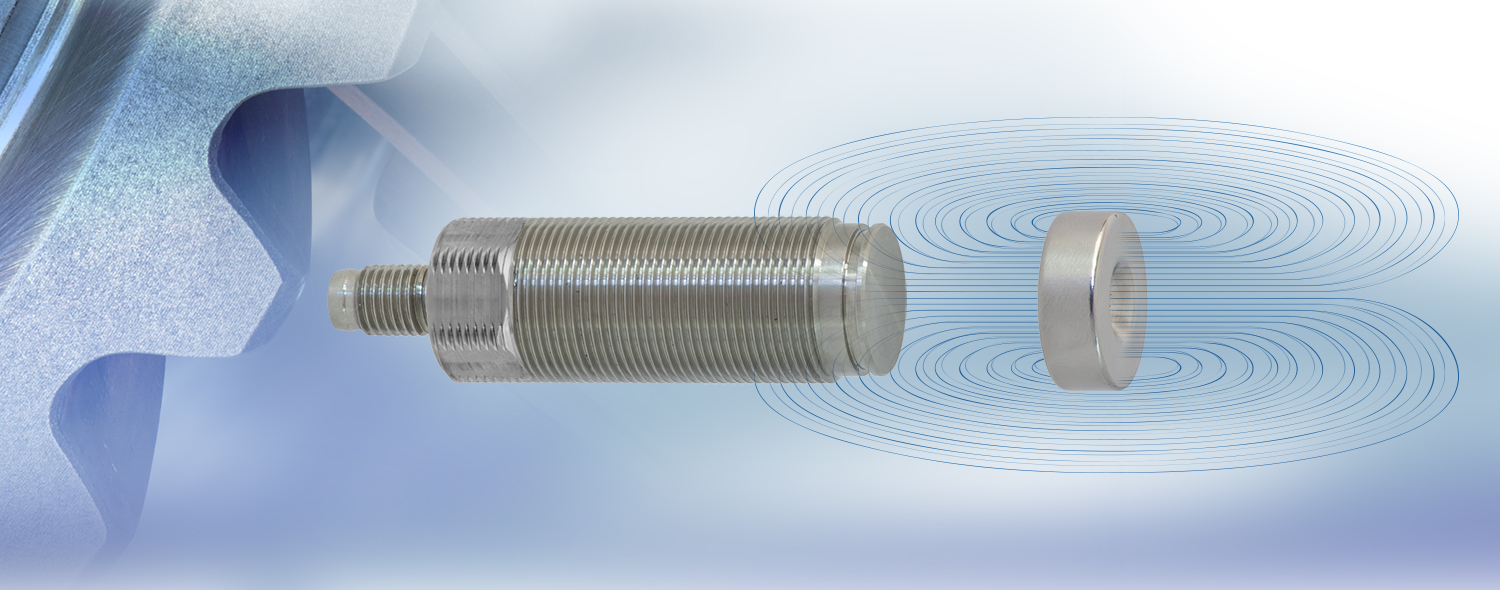

Magneto-inductive distance measurement

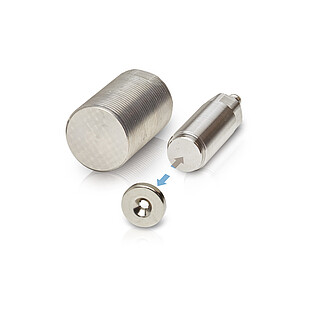

Magneto-inductive distance sensors

mainSENSOR is based on an innovative measuring principle, which has been developed by Micro-Epsilon in order to combine the advantages of both inductive and magnetic sensors. Magneto-inductive sensors are frequently used as alternative to inductive sensors and proximity sensors in process automation, the packaging industry and in machine monitoring. Measuring the distance to a magnet which is fixed at the measurement object, the sensor outputs a continuous, linear signal. As different strength magnets are applied, measuring ranges of between 20 mm and 55 mm can be achieved. However, in order to adapt the measuring range, it is only necessary to change the magnet.



  1. Magneto-inductive displacement and distance measurement
  2. Ideal alternative to inductive sensors and proximity sensors
  3. Linear output signal, high basic sensitivity and temperature stability
  4. Selectable measuring ranges up to 55mm with different magnets
  5. Long-life sensor due to non-contact measurement
  6. Ideal for customer-specific designs and serial applications
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

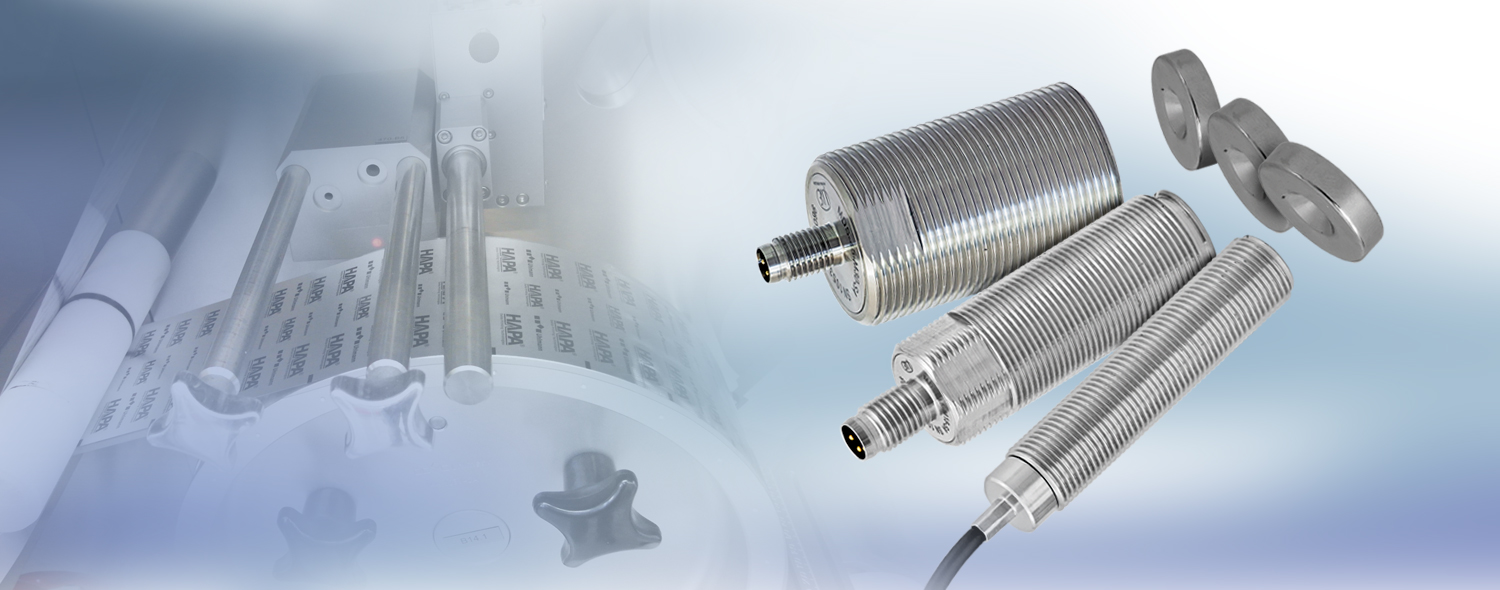

Flexible sensor concept

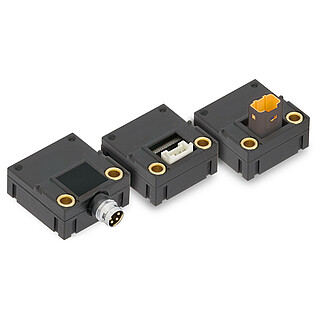

Due to their flexible concept, the sensors are ideal for a wide range of applications, particularly where large numbers of pieces are required. The standard sensors are designed in a stainless steel M12, M18 and M30 or a flat plastic housings suitable for industrial applications. Customer-specific modifications to the plate and sensor housing can be easily carried out for serial applications.

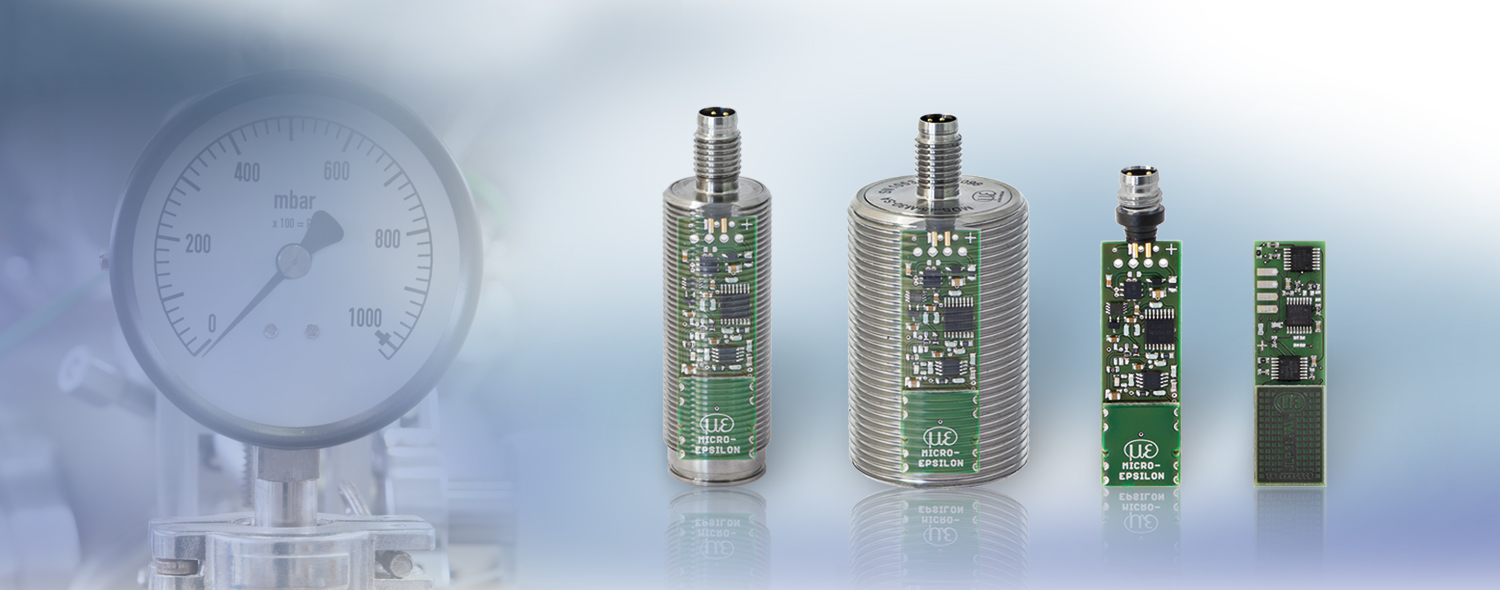

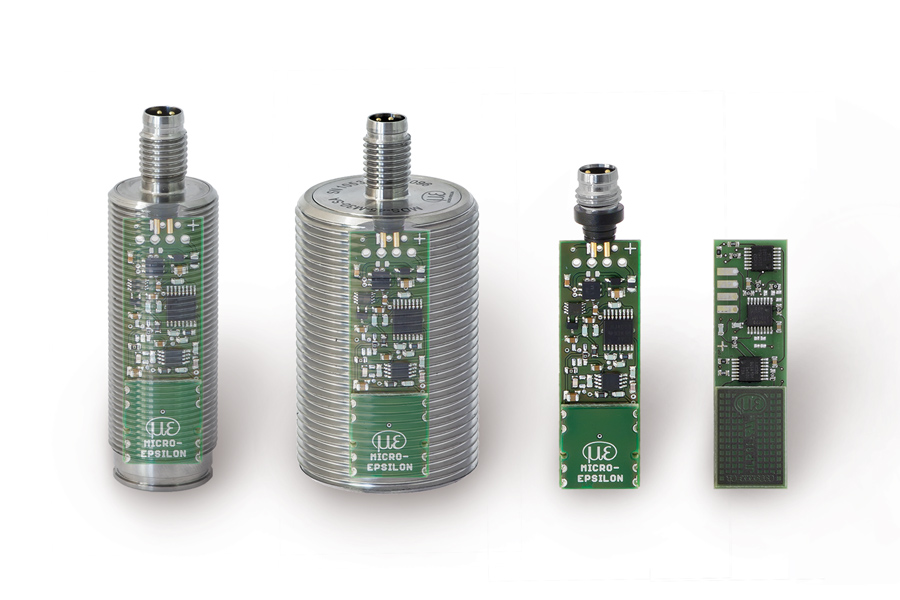

 Sensor concept - one board in various housings

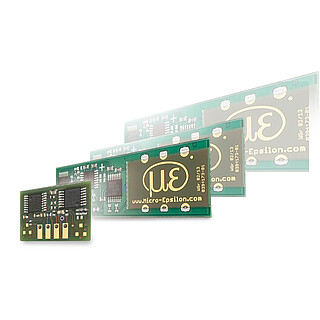

Flexible sensor concept - one electronics in various housings

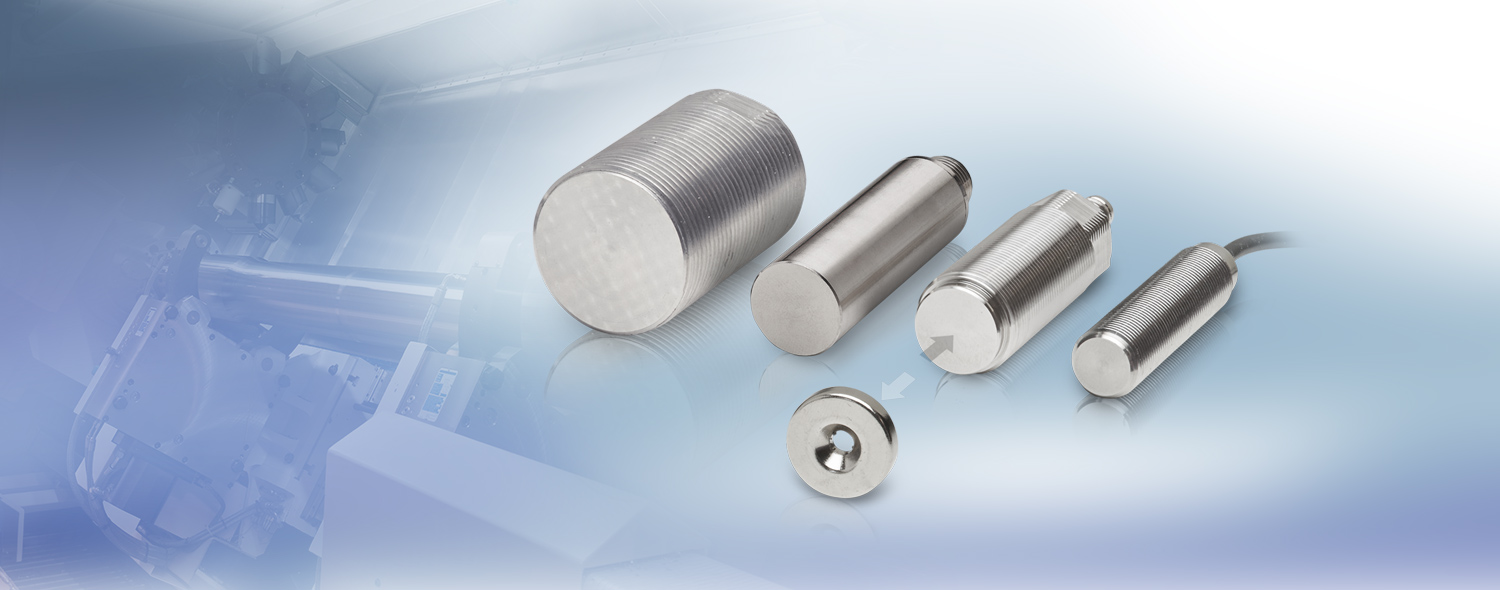

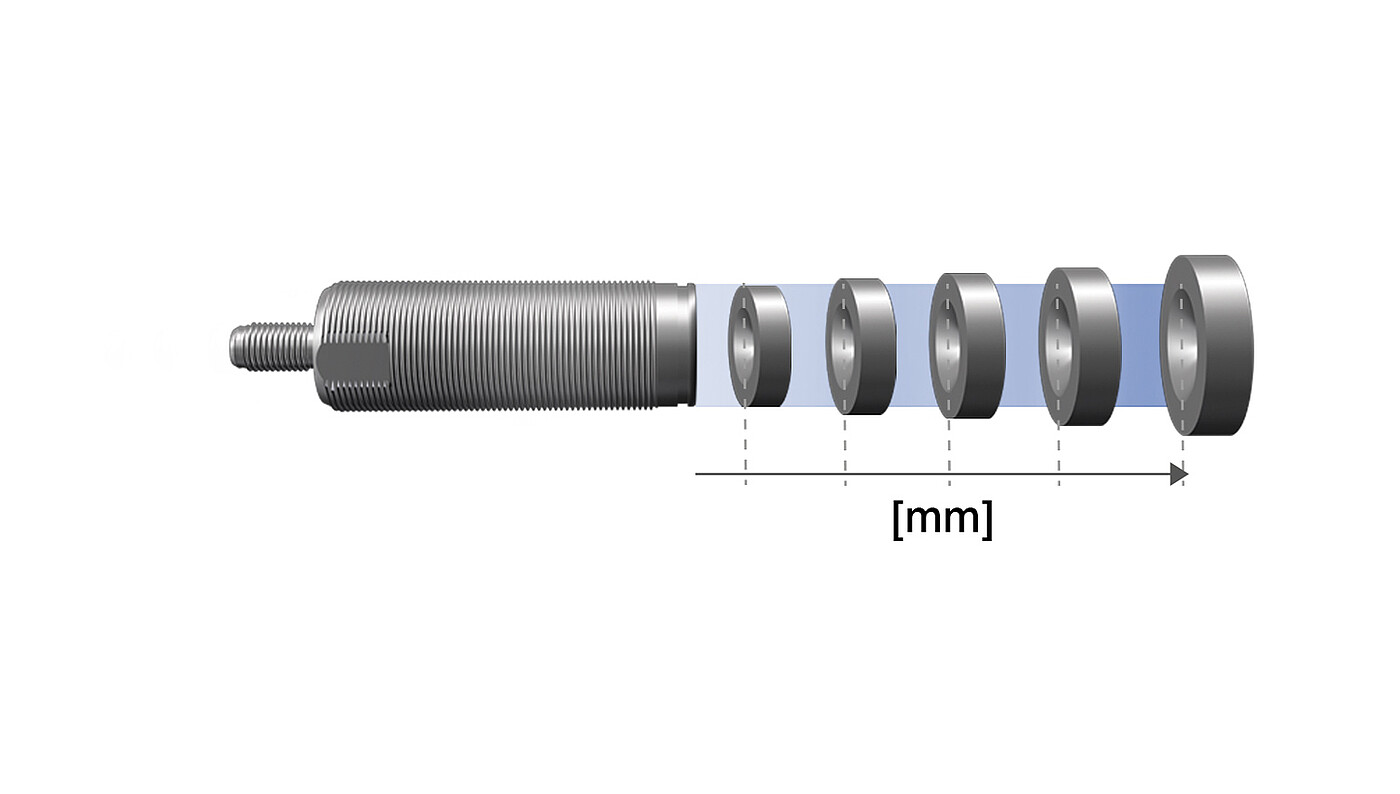

Defining the measuring range using magnets

With the magneto-inductive measuring principle, the magnets used act as target. However, in order to change the measuring range, it is only necessary to exchange the magnet. Further calibration or sensor settings are superfluous. Therefore, measuring ranges of 20 to 55mm can be achieved using only one sensor.

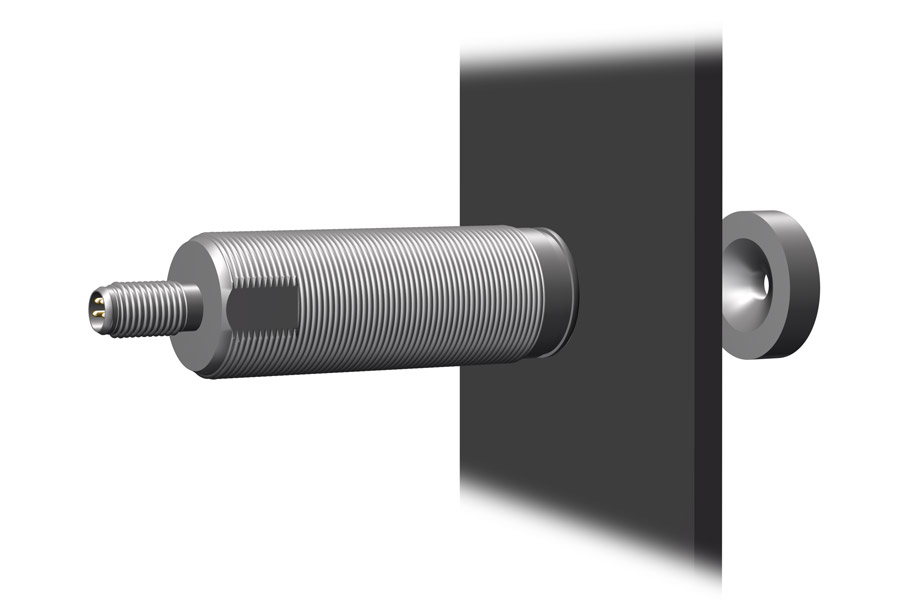

Measuring through non-ferromagnetic materials, particularly metals

Measurement through objects

Unlike conventional measuring methods, the magneto-inductive sensors enable measurements through non-ferromagnetic materials, particularly metals such as aluminium or stainless steel. A clear benefit is provided here as the sensor and the magnet can be installed separately in applications with closed systems or housings. It is therefore possible to mount the sensor safely in harsh environments.

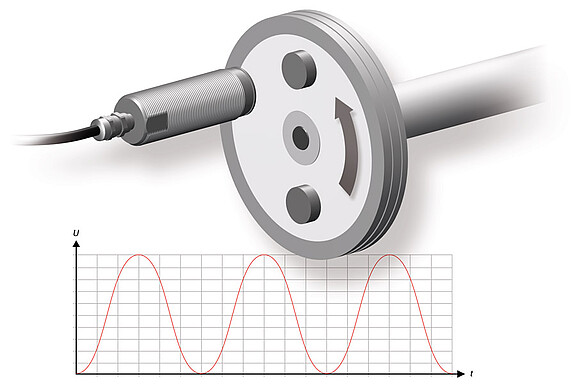

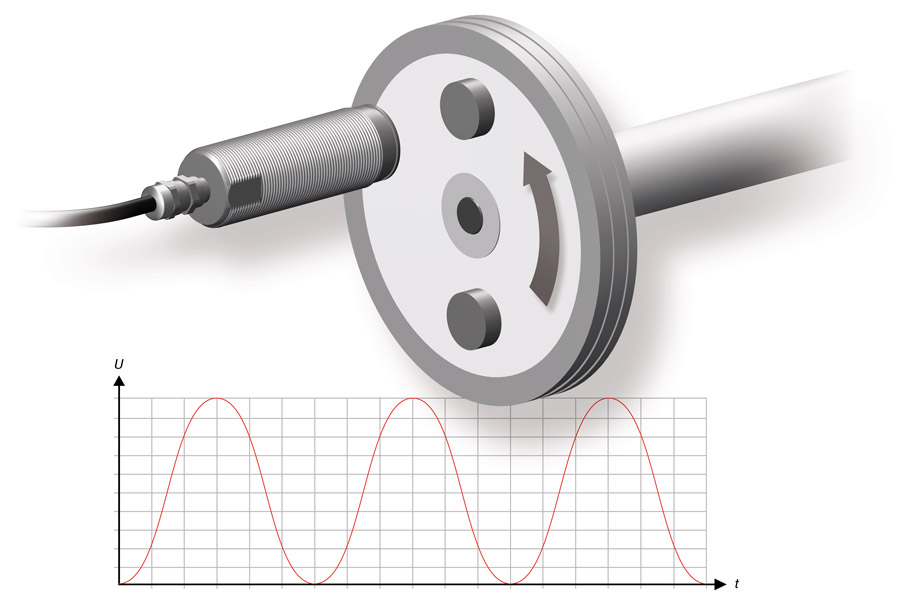

Suitable for speed measurement

mainSENSOR is also used for rotational speed measurement. In order to do so, one or two magnets are mounted on the rotating measuring object. Regardless of the direction of rotation, the sensor measures the speed of the target object.

Interface and signal processing units
