capaNCDT 61x0/IP

Industrial controller IP68 for harsh environments

Capacitive measuring system IP68 for industrial applications

The capaNCDT DT61x0/IP is an industrial-grade, capacitive sensor system for displacement, distance and position measurements. Consisting of a sensor, a sensor cable and a controller, the measuring system is ready for use without any on-site calibration. Due to its very good temperature stability, immunity to magnetic fields and robust design that is protected to IP68, the capaNCDT DT61x0/IP is used for industrial measurement tasks such as air gap measurement in generators and regulation of plant and machinery.



  1. Measuring ranges (mm): 0.5 | 1 | 1.25 | 2 | 3 | 4 | 6
  2. Linearity max. 1 µm
  3. Resolution max. 0.05 µm
  4. Voltage output
  5. Digital RS485 interface (DT6120/IP)
  6. Dust-proof and watertight aluminum die-cast housing (IP68)
  7. Robust and temperature-resistant sensor cable
  8. Wide range of sensors (gap sensor/board design/cylindrical sensor/thread sensor)
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Schnittstellen- und Verrechnungseinheiten

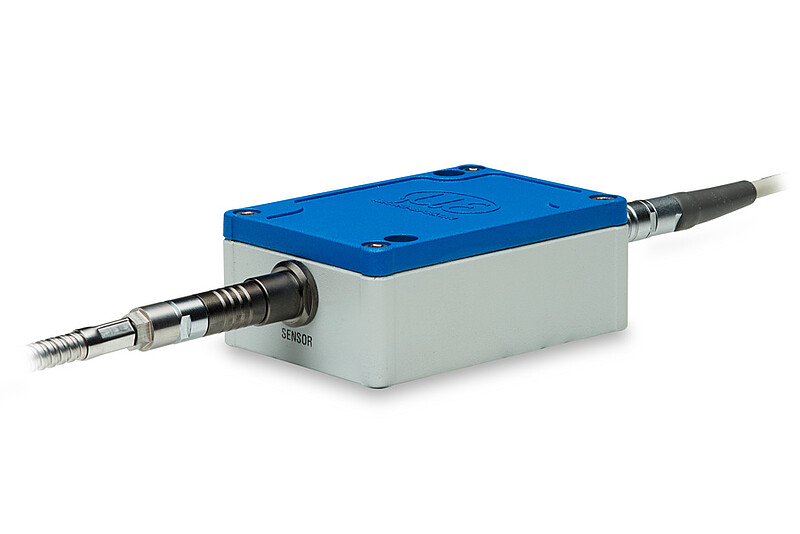

Protected to IP68, the DT6110/IP capacitive controller is designed for measurement tasks in industrial environments. The DT6110/IP controller is available with either a voltage or current output, and can also be used in confined spaces due to its compact design.

Classified to IP68, the DT6120/IP capacitive controller is designed for measurement tasks in industrial applications. In addition to either a voltage or current output, the DT6120/IP controller offers an RS485 interface. Due to its compact design, the controller can also be used in confined spaces.


  1. Resolution dynamic 0.2 % FSO (1 kHz)

  2. Frequency response 1 kHz (-3 dB)

  3. Output 0...10 V (short circuit proof)

  4. Digital interface RS485
