wireSENSOR WDS-P series


Robust industrial design

High precision

Versatile integration

Industrial draw-wire sensors

The P draw-wire sensors feature a robust aluminum profile housing that enables particularly flexible installation using slot nuts. This well-designed construction allows simple and fast integration into a wide range of industrial applications.

With high wire acceleration and measuring ranges of up to 50 m, the sensors provide a high-performance solution for a wide variety of applications, from machine and system monitoring to building monitoring.

Precision, durability and flexibility make the P series the ideal choice for demanding measurement tasks in industry and automation.

Get in touch with us!
Download now: catalogs, manuals, software
logo

Characteristics

  1. Measuring ranges (mm): 100 mm - 50,000 mm
  2. Max. linearity ± 0.01 % FSO
  3. Wire accelerations up to: 15g
  4. Telescopic measuring principle
  5. Versatile use
  6. Practical mounting slots for easy attachment
  7. Robust aluminum housing
[]
Contact
MICRO-EPSILON India Private Limited
+91 7410 018316
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

High-performance sensor technology for a wide range of applications

Silo fill level
The wireSENSOR WDS-30000-P200 draw-wire displacement sensor determines the fill level in silos from the wire length of a lowered sensing weight. Its 30-meter measuring range enables reliable measurements even in tall silos.
Measuring trolley and hoist travel
The WDS-15000-P115 draw-wire displacement sensor measures the travel of the trolley and hoist from the change in length of the extended measuring wire. This precisely determines the current axis positions over distances of up to 15 meters.
Measuring rotor blade deflection
The WDS-3000-P96 draw-wire displacement sensor measures the deflection of rotor blades under varying load conditions, enabling precise analysis of their bending behavior during load tests.

Characteristics

Analog:

  • Measuring ranges: 100 | 150 | 300 | 500 | 750 | 1,000 | 1,500 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.1 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP65
  • Resolution: virtually infinite

Digital:

  • Measuring ranges: 1,000 | 1,500 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.02 % FSO
  • Digital interface:   PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
  • Protection class: IP65
  • Resolution: 0.012 mm

Downloads

Datasheet wireSENSOR P60
Setup guide wireSENSOR P60
Setup guide wireSENSOR WDS P60 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P60/P96" analog, STEP
CAD file, 3D model "wireSENSOR P60/P96" digital, STEP

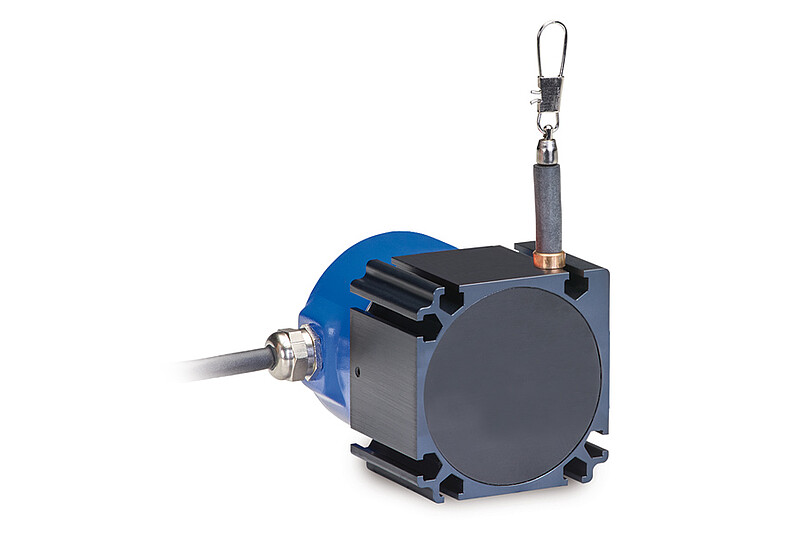

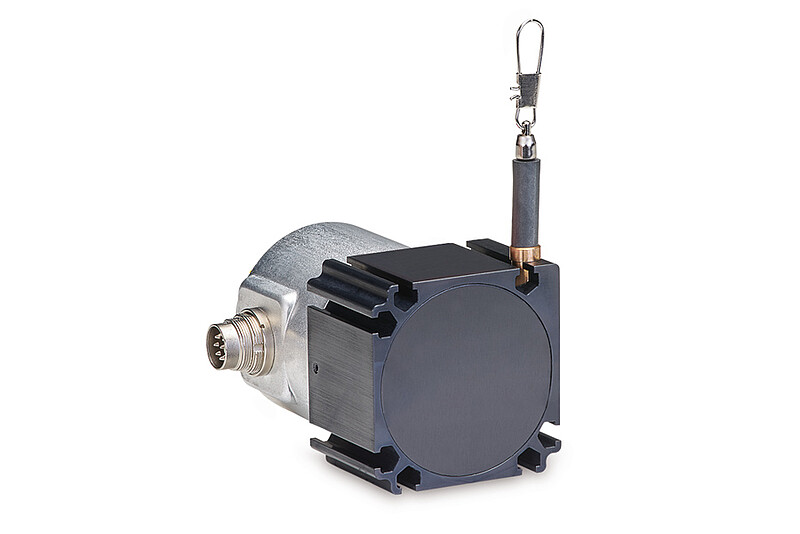

WDS-P60 draw-wire sensor, analog and digital

Characteristics

Analog:

  • Measuring ranges: 2,000 | 2,500 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.1 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP65
  • Resolution: virtually infinite

Digital:

  • Measuring ranges: 3,000 mm
  • Temperature range: -20 … +80 °C
  • Linearity:  ≤ ±0.02 % FSO
  • Digital interface:  PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
  • Protection class: IP65
  • Resolution:  0.032 mm

Downloads

Datasheet wireSENSOR P96
Setup guide wireSENSOR P96
Setup guide wireSENSOR WDS P96 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P60/P96" analog, STEP
CAD file, 3D model "wireSENSOR P60/P96" digital, STEP

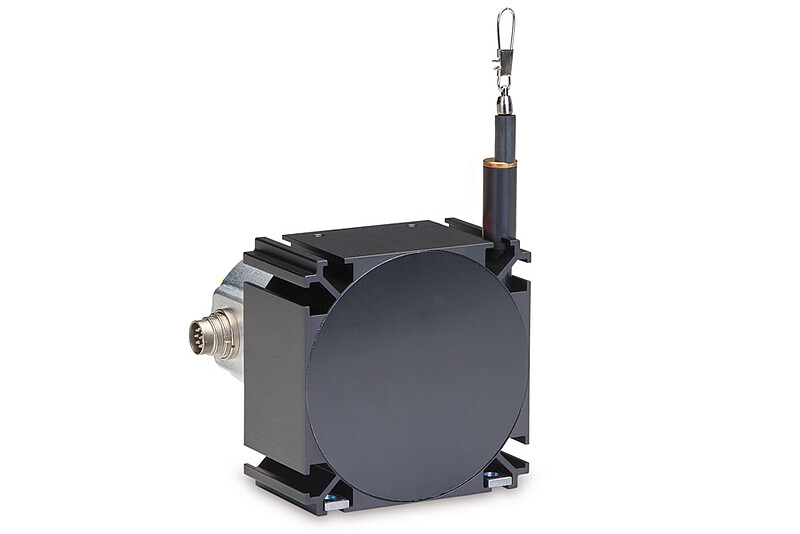

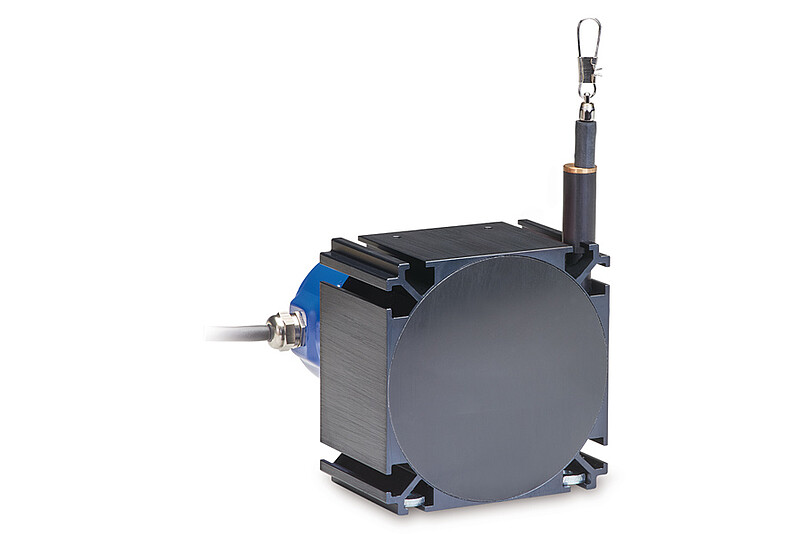

WDS-P96 draw-wire sensor, analog and digital

Characteristics

Analog:

  • Measuring ranges: 3,000 | 4,000 | 5,000 | 7,500 | 10,000 | 15,000 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.1 % FSO
  • Output type:  Potentiometer, current, voltage
  • Protection class:  IP65
  • Resolution:  virtually infinite

Digital:

  • Measuring ranges: 5,000 | 7,500 | 10,000 | 15,000 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.01 % FSO
  • Digital interface:   PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
  • Protection class:  IP65
  • Resolution:  0.038 mm

Downloads

Datasheet wireSENSOR P115
Setup guide wireSENSOR P115
Setup guide wireSENSOR WDS P115 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P115" analog, STEP
CAD file, 3D model "wireSENSOR P115" digital, STEP

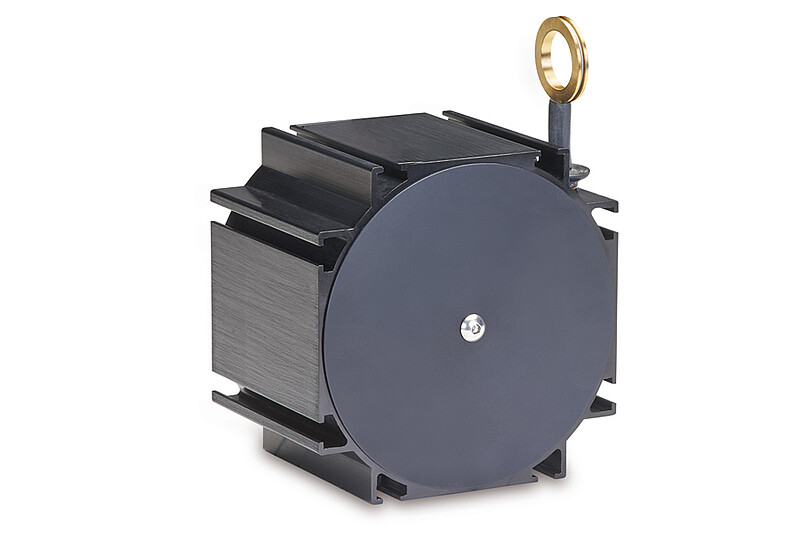

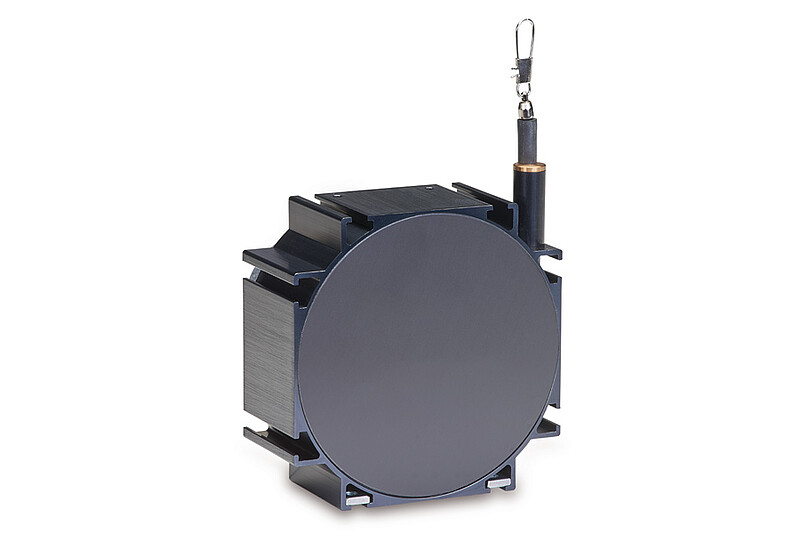

P115 draw-wire sensor, analog and digital

Characteristics

Digital:

  • Measuring ranges: 30,000 | 40,000 | 50,000 mm
  • Temperature range: -20 … +80 °C
  • Linearity:  ≤ ±0.01 % FSO
  • Digital interface: PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
  • Protection class:  IP65
  • Resolution:  0.061 mm

Downloads

Datasheet wireSENSOR P200
Setup guide Draw-wire mechanisms
Setup guide wireSENSOR WDS P200 (new encoders)
Operating instructions draw-wire mechanism
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P200", STEP

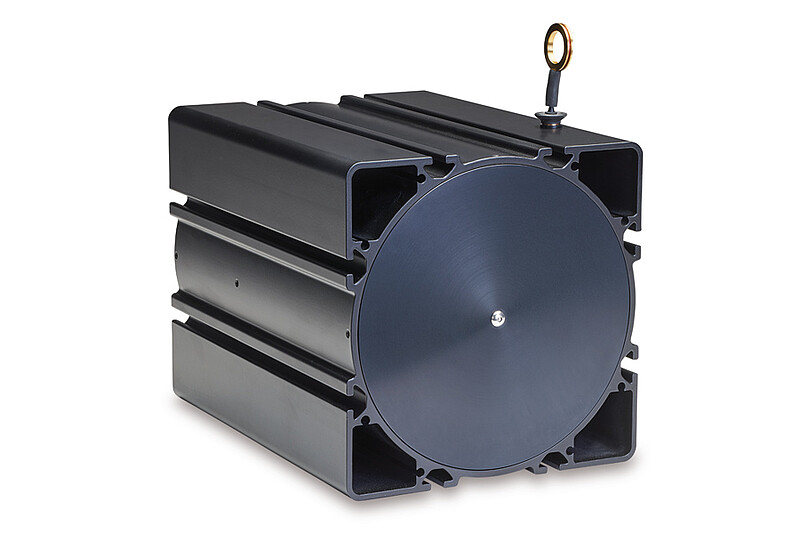

Draw-wire sensors WDS-P200 digital
