thicknessGAUGE

Sensor system for precise thickness measurements

thicknessGAUGE C.C

The thicknessGAUGE C.C sensor systems use confocal chromatic displacement sensors for the thickness measurement. The sensors allow for measurements to be performed with outstanding accuracy and high measuring rates. In addition, this innovative measuring technique enables measurements of reflective and shiny surfaces.

logo

Characteristics

  1. Sensor technology used: confocal chromatic displacement sensors
  2. Measuring range (thickness): 2.5 mm
  3. Accuracy: ±0.4 µm
  4. Measuring rate: up to 10 kHz
  5. Ideal for high resolution measurements of highly reflective and shiny surfaces
  6. Also for transparent and semi-transparent film
[]
Contact
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Precise thickness measurement using confocal chromatic sensors

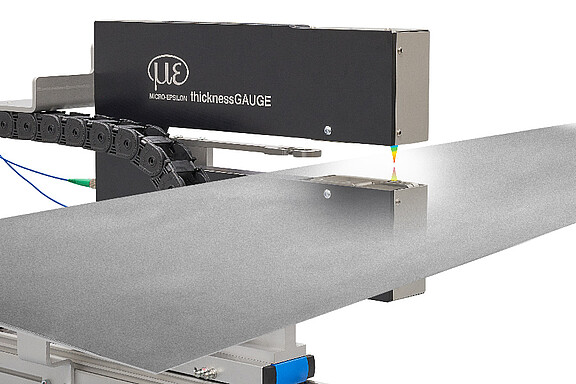

The thicknessGAUGE C.C sensor systems are assembled ready for operation and calibrated at the factory. They consist of a stable frame with two confocal chromatic sensors attached to it. These sensors measure the thickness of the measuring object according to the difference principle. The confocal sensors are perfectly adjusted to each other in terms of their mounting conditions, therefore providing high measurement accuracy.
