Confocal chromatic sensors

The confocalDT sensors product range stands for the highest precision and dynamics in confocal chromatic measurement technology. These sensors enable high-precision and fast measurements for both distance and thickness measurements of transparent objects. In addition, innovative controller and sensor technologies ensure high signal stability on all surfaces. The high-performance sensor portfolio enables the solution of a wide range of measurement tasks, e.g., in flat glass production, in measuring machines and in semiconductor machine construction.

logo

Characteristics

  1. Distance and thickness measurements with enormous resolution and measuring rate
  2. Ideal for automation and production monitoring
  3. Virtually surface-independent, even for mirrors and glass
  4. Extremely small, constant measurement spot for the finest details
  5. Nanometer-precise resolution
  6. Industrial-grade controller with ideal signal-to-noise ratio
  7. Passive measuring system, ideal for applications in a vacuum
[]
Contact
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Highest precision in confocal chromatic displacement and thickness measurements

The confocalDT sensors product range stands for the highest precision and dynamics in confocal chromatic measurement technology. The sensors are used to solve a wide range of measurement tasks.

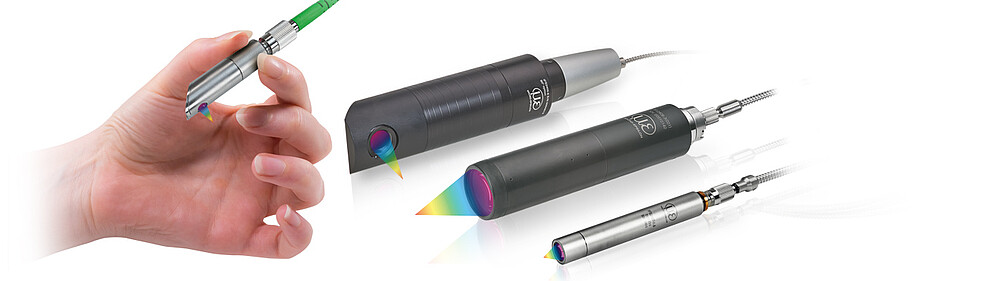

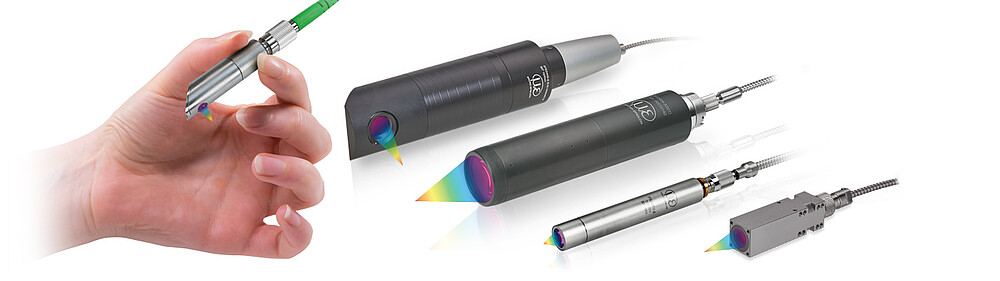

Largest sensor portfolio for precise measurements

The right sensor for every measurement task! Whether for confined installation spaces, for measurements on curved surfaces or for nanometer-precise measurements in the semiconductor industry: the confocalDT sensors are available in different series that impress in numerous applications.

logo

Next-generation sensors

The confocalDT IFD2415 and IFD2410 are powerful confocal sensors with integrated controller. The space-saving IP65 housing enables quick integration as no optical fiber is required. The sensors are ideally suited for high-precision distance and thickness measurements. The IFD2415 can also be used for multi-layer thickness measurements of up to 5 layers. The active exposure time control allows stable measurements on varying surfaces, even with dynamic processes of up to 25 kHz.

Read more

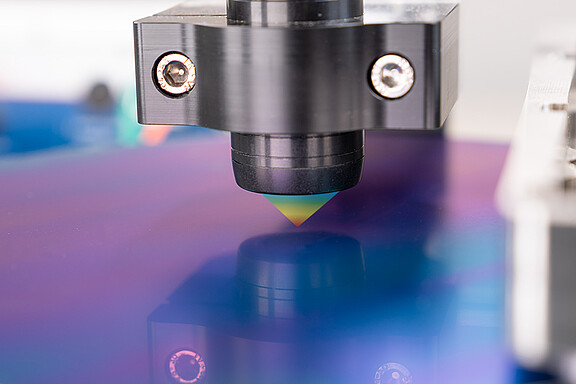

High resolution and speed: distance and thickness measurements with more precision

The confocalDT sensors provide an excellent signal-to-noise ratio enabling fast measurements at high accuracy. Thanks to their fast surface compensation, these sensors achieve extraordinary signal stability with varying surfaces.

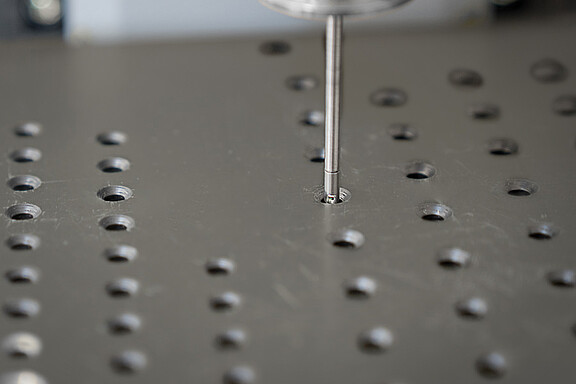

Ultra-small light spot: measurement of the smallest details and structures

Confocal sensors from Micro-Epsilon generate the smallest of light spots <3 µm due to their high Numerical aperture (NA). Therefore, the finest details and structures can be detected reliably.

Large tilt angle

The confocalDT IFS sensors tolerate a large tilt angle of up to 48°. Therefore, curved and structured surfaces can be detected reliably to generate stable signals.

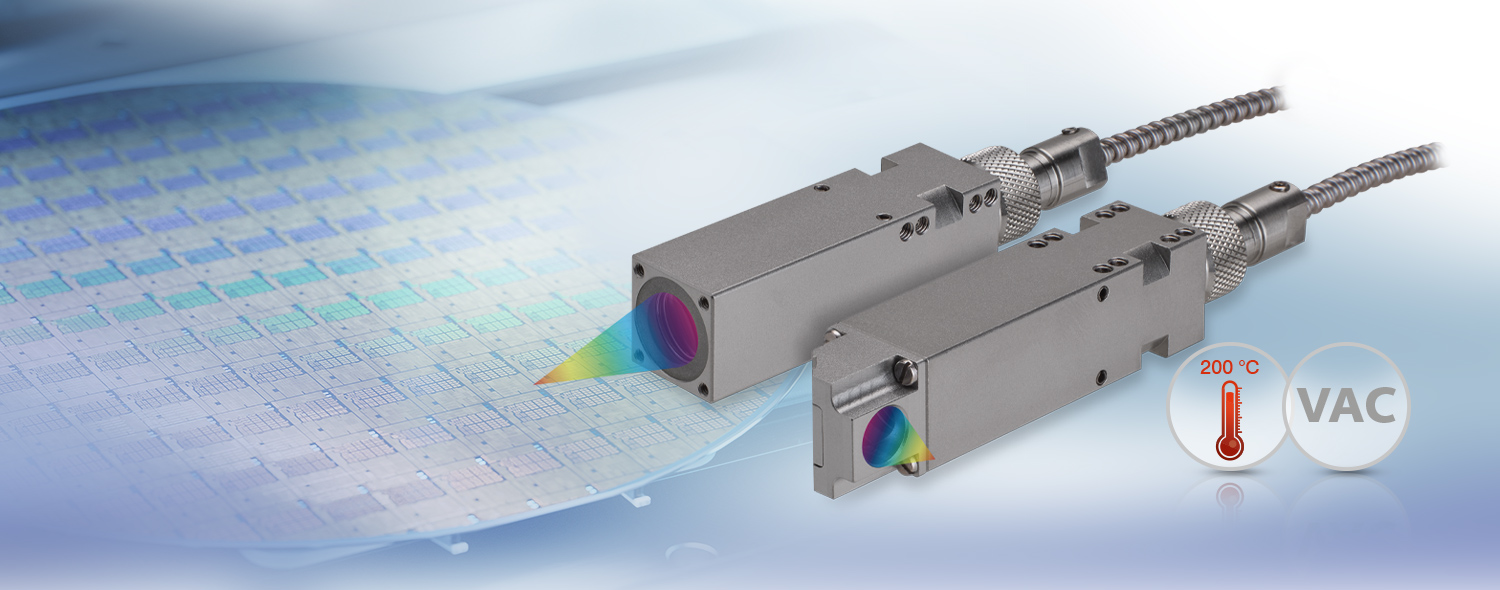

Use in a vacuum

The confocalDT sensors consist of passive components and do not emit any heat. Particularly for use in vacuum applications, Micro-Epsilon offers sensors, cables and accessories which are suitable for the respective specification (clean room, vacuum ultra-high vacuum UHV). Vacuum-compatible sensors are available with various measuring ranges and either axial or radial beam paths.

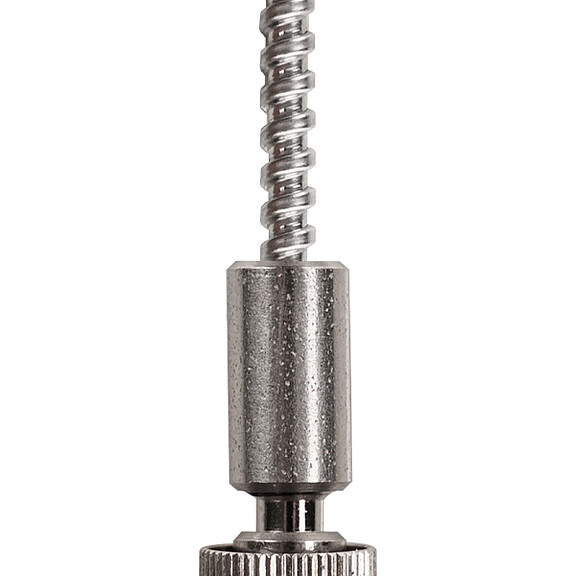

Robust optical fibers for industry, robotics and vacuum

Powerful on all surfaces

Ease of use via web interface

Due to a user-friendly web interface, no additional software is necessary to configure the controller and the sensors. The web interface can be accessed via Ethernet and provides set up and configuration options. For thickness measurements, materials are stored in an expandable materials database.

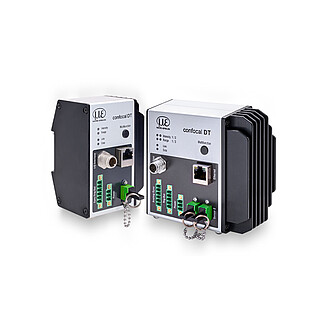

Numerous interfaces for simple integration

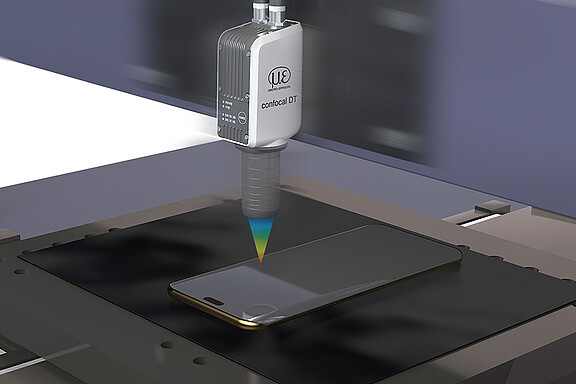

Ideal for precise measurements in industrial applications

Video: Confocal chromatic sensors for distance and thickness measurements

Application
