confocalDT IFD2410/2415

With integrated controller and Industrial Ethernet

Next generation confocal chromatic sensor system

The confocalDT IFD2415 and IFD2410 are powerful confocal sensors with integrated controller. The space-saving IP65-housing enables fast integration into plant equipment and machines as no optical fiber is required. Furthermore, the IFD2410 and 2415 are ideally suited to high precision distance and thickness measurements in industrial series applications. In addition, the IFD2415 can be used with transparent materials for multi-layer thickness measurements of up to 5 layers. The active exposure time regulation of the CCD line enables fast and stable measurements of varying surfaces even in dynamic processes up to 25 kHz. The measuring system is also characterized by high luminous intensity which enables fast and reliable measurements even on dark surfaces.

logo

Characteristics

  1. Measuring ranges (mm): 1 | 3 | 6 | 10
  2. Adjustable measuring rate up to 25 kHz
  3. Resolution from 8 nm
  4. Linearity from 0.25 µm
  5. For precise distance and thickness measurements up to 5 layers
  6. All-in-one: sensor and controller in one compact housing
  7. Easy integration, as no fiber optics required
  8. Robust IP65 aluminum housing
  9. Direct PLC connection due to Industrial Ethernet
  10. Ideal for series applications
[]
Contact
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

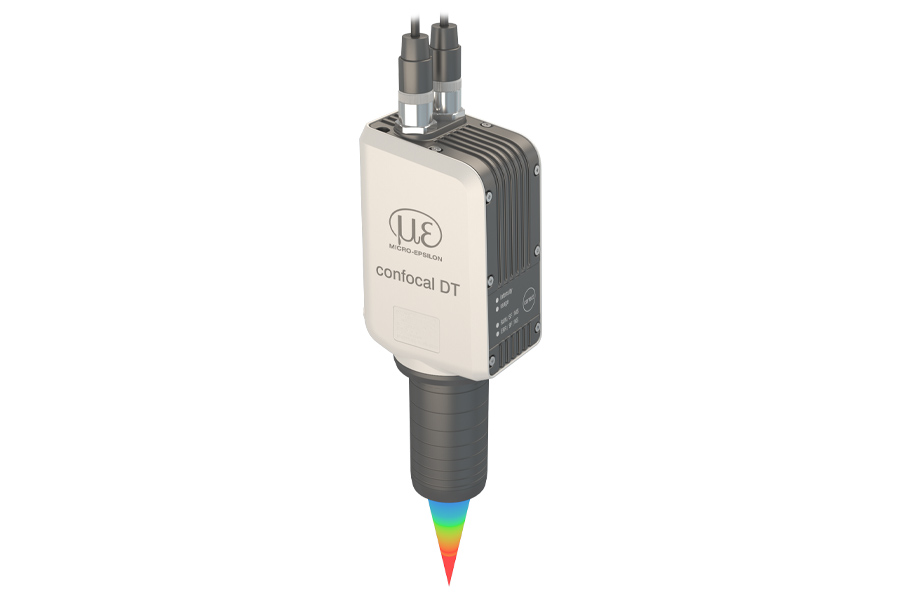

Now with integrated Industrial Ethernet interface

Their integrated Industrial Ethernet interface (EtherCAT) allows for the IFD2410/2415 sensors to be directly integrated into the PLC without any additional interface module. You benefit from real-time data without time delay as well as reduced installation and wiring effort. The sensor is parameterized in Ethernet mode via the intuitive web interface. Industrial Ethernet ensures that the settings are automatically applied to the PLC environment. This eliminates time-consuming setting efforts in the programming environment.

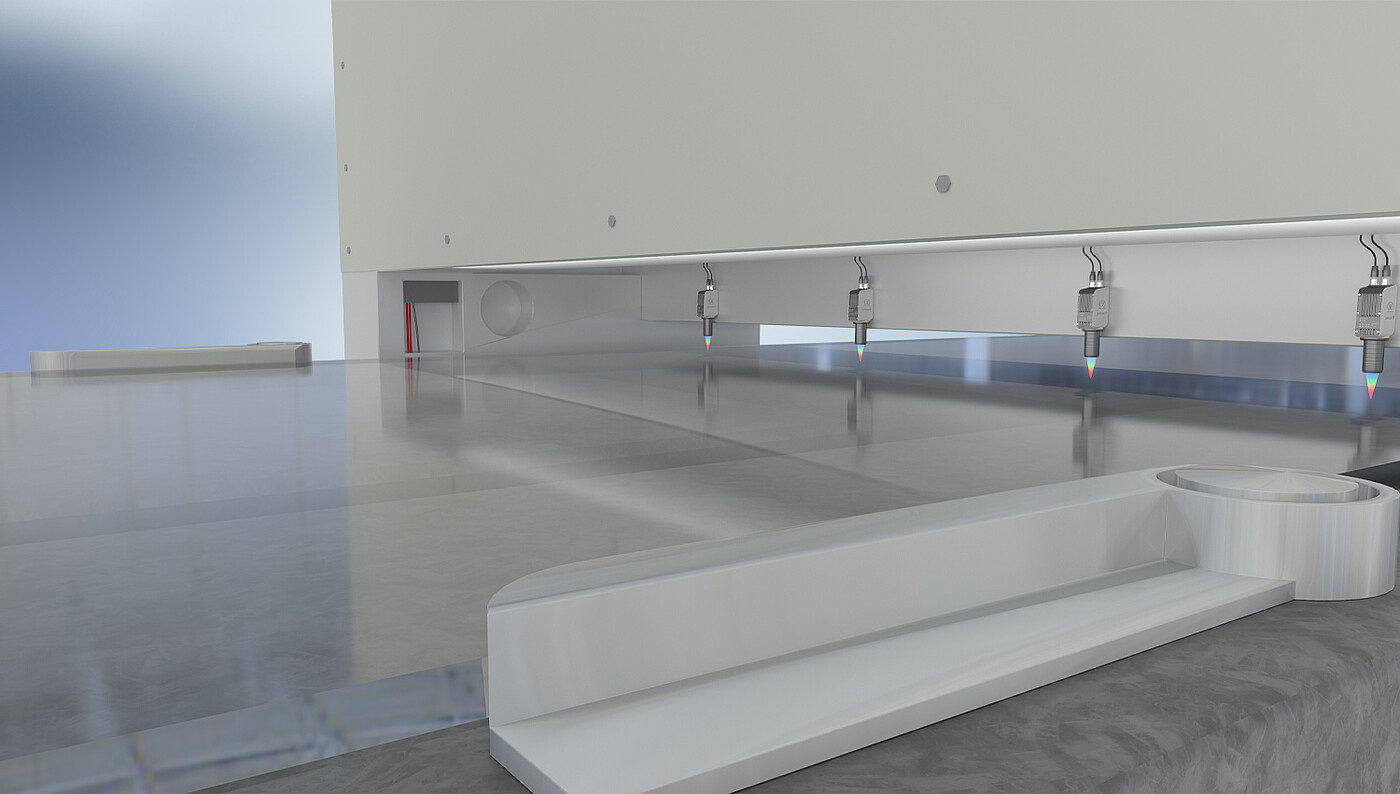

Optimized for industrial series applications

Its compact design makes the sensor ideal for series applications.

logo

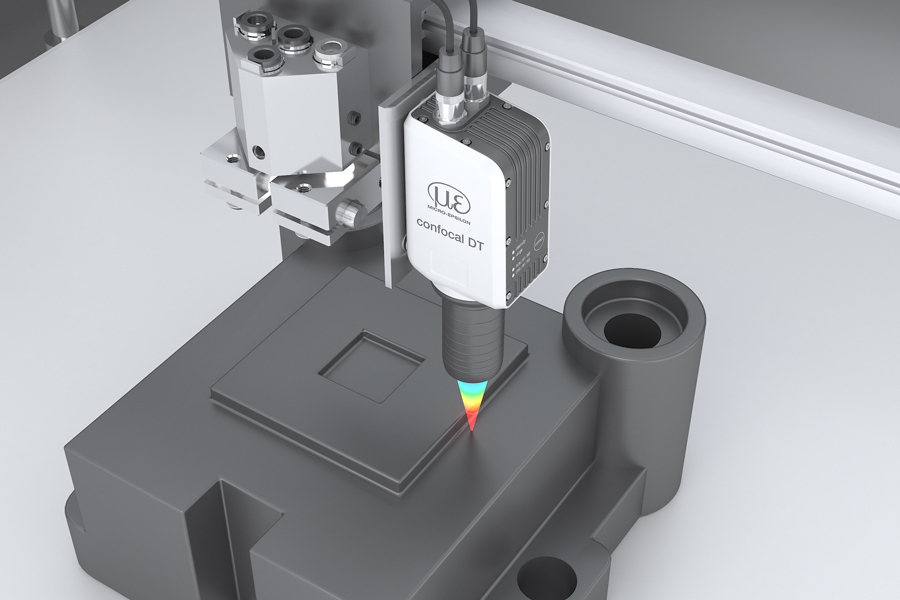

Easy integration in plants and systems

The space-saving IP65-housing enables fast integration into plant equipment and machines as no optical fiber is required. Due to the compact design of sensor and controller in one housing, the measurement signal is transmitted directly to the controller and evaluated there. The sensor is mounted either via three threaded holes in the controller housing or via a radial clamp on the sensor head. The versatile connection options via EtherCAT, analog, encoder or RS422 allow easy integration into existing plants and systems.

The entire configuration of the controller and the sensors is performed via an easy-to-use web interface.

Ease of use via web interface

Due to a user-friendly web interface, the entire configuration process is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options. Materials are stored in an expandable materials database.

Application examples
