Robust draw-wire sensor mechanics for customer-specific encoders

Draw-wire mechanics for customer-specific encoder mounting

The wireSENSOR mechanics from Micro-Epsilon are designed for mounting of incremental and absolute encoders. They enable you to individually determine the interface, the resolution and the type of connection which can be adapted for further signal processing. High quality precision components and their robust design ensure high operational safety and a long service life even under harsh industrial conditions of use. For series applications involving a large number of pieces, we develop and manufacture tailor-made OEM designs.

Contact

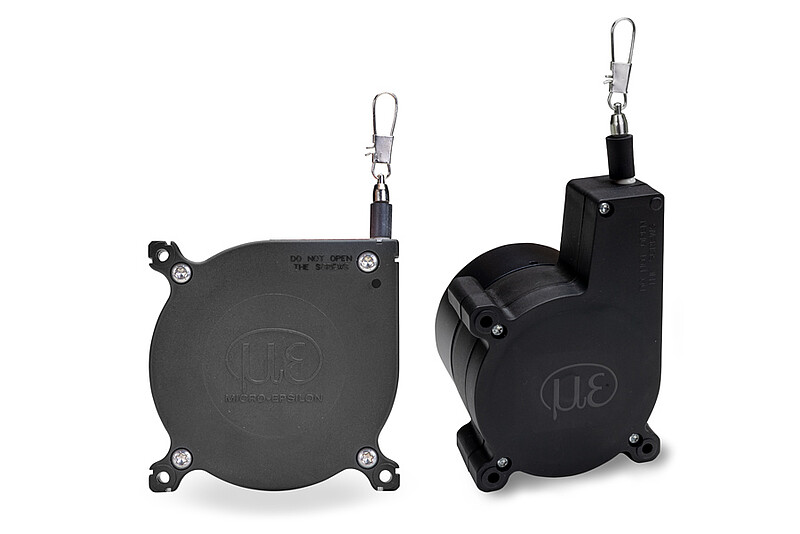

Draw-wire sensor mechanics with plastic housing - WPS mechanics

The MK wireSENSOR mechanisms are designed for easy mounting of an incremental or absolute encoder. Therefore, the user can individually choose the interface, resolution and connection type. Due to their compact design, the mechanics can also be integrated into confined installation spaces.

Characteristics

Measuring ranges (mm): 1,500 | 2,400 | 2,500 | 3,500 | 5,000 | 8,000
Linearity ± 0.01 % FSO
Output types: dependent on encoder
Almost any encoder can be mounted
Robust plastic housing
High quality precision components
OEM models available on request

Downloads

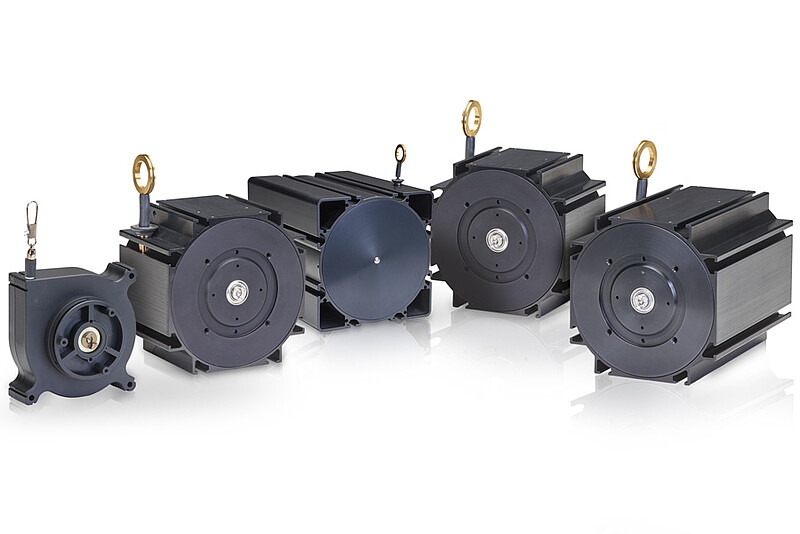

Robust draw-wire sensor mechanics with aluminum housing - WDS mechanics

The wireSENSOR mechanics of the P60, P96, P115 and P200 series are designed for easy mounting of an incremental or absolute encoder. Therefore, the user can individually choose the interface, resolution and connection type. Their robust aluminum housing makes these mechanics ideal for industrial environments.

Characteristics

Measuring ranges (mm): 1,500 | 3,000 | 5,000 | 7,500 | 10,000 | 15,000 | 30,000 | 40,000 | 50,000
Linearity ± 0.01 % F.S.O.
Output types: depend on encoder
Almost every encoder can be mounted
Robust aluminum case
High quality precision components
OEM models available on request
