capaNCDT 6228

Capacitive high temperature sensors

Capacitive high temperature sensors up to 800 °C

The new capacitive sensor system capaNCDT 6228 is designed for measurement tasks with ambient temperatures up to +800 °C. Up to four high-temperature sensors of the CSE/HT series can be connected simultaneously to the powerful controller. The integrated high-temperature sensor cable compensates for interference from electric or magnetic fields. Furthermore, the measured data is output both analog and digital via modern interfaces such as Ethernet and EtherCAT.




  1. Precise distance measurement at extreme ambient temperatures from -50 °C to 800 °C
  2. Resolution from 10 nm
  3. Frequency response 1 kHz (-3 dB)
  4. Analog output 0 ... 10 V / 4 ... 20 mA
  5. Digital interface: Ethernet (with controller DT6228) / Ethernet and EtherCAT (with controller DT6238)
  6. Up to 4 measuring channels per controller
  7. Synchronization of more than 4 measuring channels with controller DT6238
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Highest precision at extreme temperatures

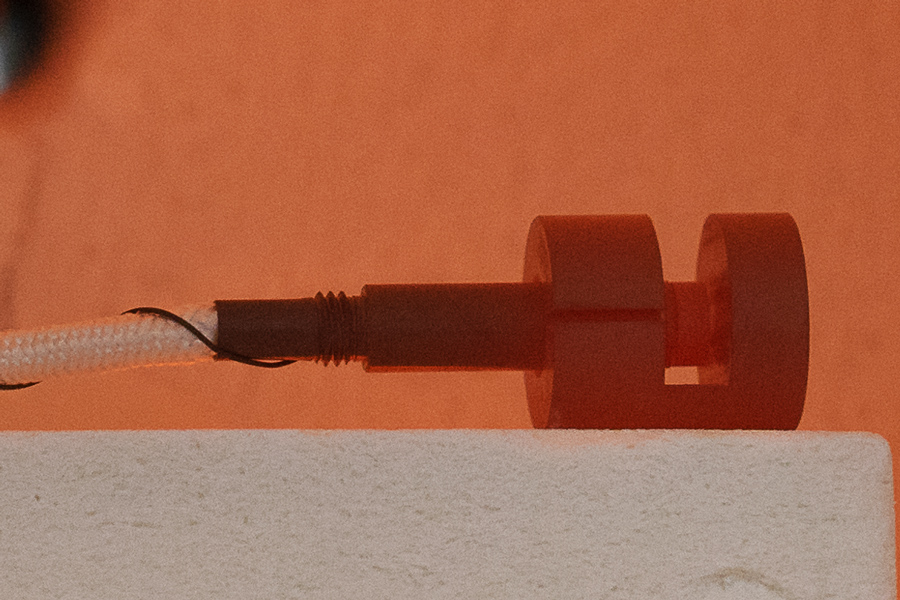

The capaNCDT CSE/HT high temperature sensors are used for measurements at ambient temperatures from -50 °C up to +800 °C. Thanks to its high temperature stability and exceptionally high linearity, the measuring system provides precise results even in challenging ambient conditions. In addition, the available sensors cover measuring ranges from 1 mm to 20 mm.

Ideal for distance and thickness measurements at high ambient temperatures

The capaNCDT 6228 is used, among other things, to measure the thickness of glowing brake discs from two sides and to monitor the level of float glass. In addition, the extremely good temperature stability enables high measurement accuracy.

Ease of use via web interface

Due to a user-friendly web interface, no additional software is necessary to entirely configure the controller and the sensors. The web interface can be accessed via Ethernet and contains all settings for the capaNCDT 6228 / 6338. In this way, filters, arithmetic operations and other parameters can be easily stored in the controller.
