Compact capacitive sensor system
The capaNCDT 6110 is a new, capacitive single-channel displacement measurement system comprising a compact controller, a sensor cable and the sensor. Due to the miniaturised controller and its easy operation, the capaNCDT 6110 is ideally suited to the integration in machines and facilities.
Characteristics
- Measuring ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
- Linearity: max. 0.025 µm
- Resolution: max. 0.005 µm
- Analogue output (voltage)
- Digital interface RS485 (controller DT6120)
- Miniaturised controller
- Supply voltage 24 VDC/55 mA (9 - 36 V)
- Ideally suited to measurements requiring high precision and stability
Compact and versatile
The capaNCDT 6110 lends itself well to a wide range of applications and is compatible with all capaNCDT sensors. With a possible power supply of between 9V and 36V, the system can also be used in passenger cars and trucks. The measurement values are output via a voltage output.

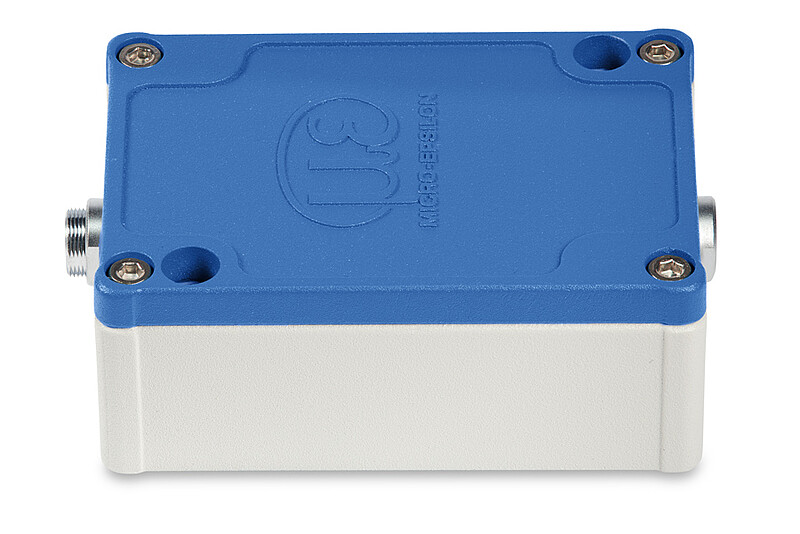

The capacitive DT6110 controller is the entry model for high resolution, capacitive displacement measurement. Due to its extremely compact size, the controller can also be integrated into restricted installation spaces. The DT6110 controller is compatible with all sensors and cables of the capaNCDT series. The DT6110/ECL2 controller provides an extended cable length.
Equipped with an analogue output and an RS485 interface, the capacitive DT6120 controller is the entry model for high resolution, capacitive displacement measurement. Due to its extremely compact size, the controller can also be integrated into restricted installation spaces. The DT6120 controller is compatible with all sensors and cables of the capaNCDT series.
