induSENSOR LVDT

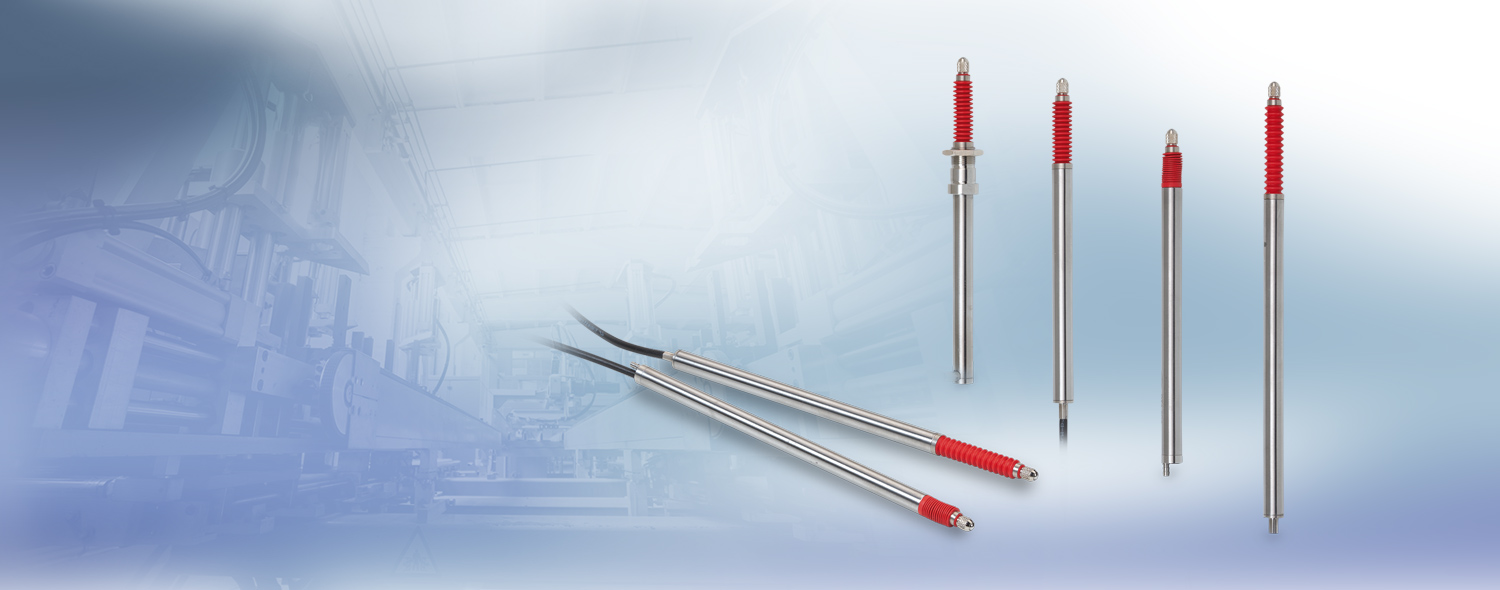

LVDT gauge sensors with plunger

induSENSOR LVDT gauges for serial applications

LVDT gauging sensors are equipped with a plunger and fitted with a return spring. The measuring probe can be interchanged with commercially available measurement probes. Measurement probes are primarily used for the measurement and inspection of work-piece geometries (length, width, diameter, thickness, depth, height, etc.).

logo

Characteristics

  1. Measuring ranges (mm): ± 1 | 3 | 5 | 10
  2. Linearity max. ± 0.003mm
  3. Repeatability max. 0.15µm
  4. Diameter ø8mm
  5. Options with pneumatic push
  6. Low cost especially for a large number of pieces
[]
