Compact confocal sensors for precise distance & thickness measurements

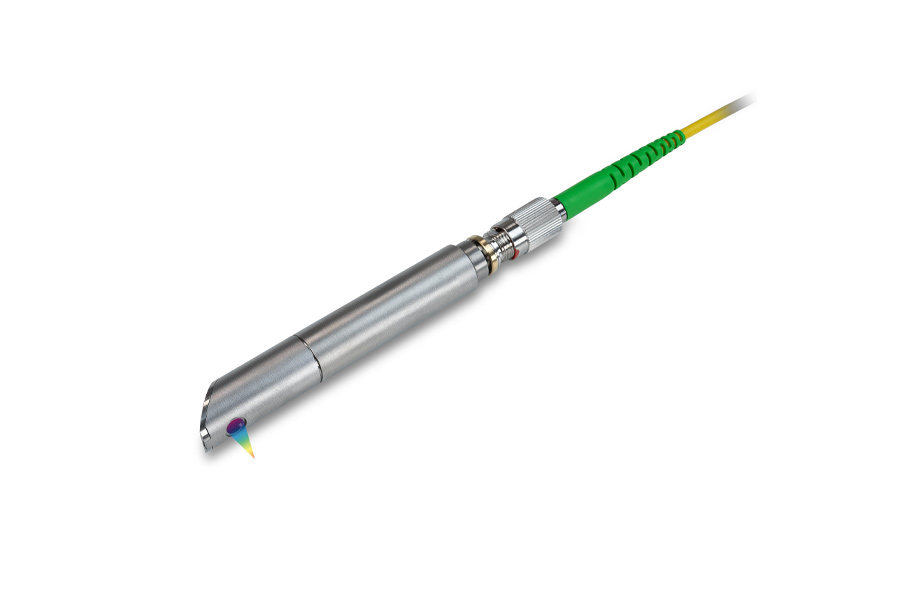

confocalDT IFS2404 displacement sensors are designed for high precision applications in restricted installation spaces. The sensors are designed with special lens technology, which allows them to be used for both distance and thickness measurement, providing high resolution and a smaller light spot diameter. They are ideally suitable for high-volume applications. The confocalDT IFS2404/90-2 is equipped with a 90° lens and can be mounted in restricted installation spaces.

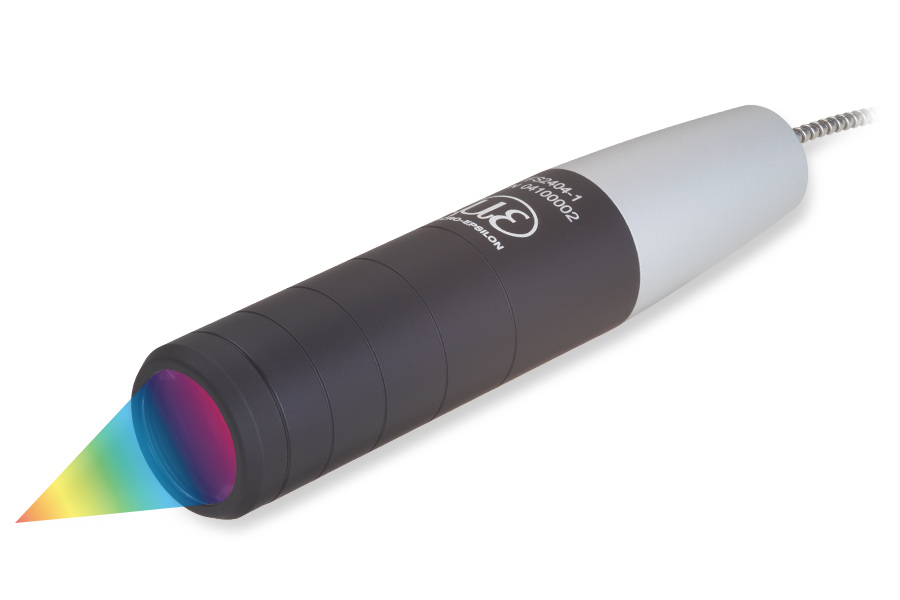

confocalDT IFS2404 - Compact sensors
- Measuring ranges (mm): 2 | 4
- Linearity: max. < ±0.5 µm
- Resolution: max. < 20 nm
- Suitable for distance measurement and one-sided thickness measurement
- Ideal for series integration with large quantities

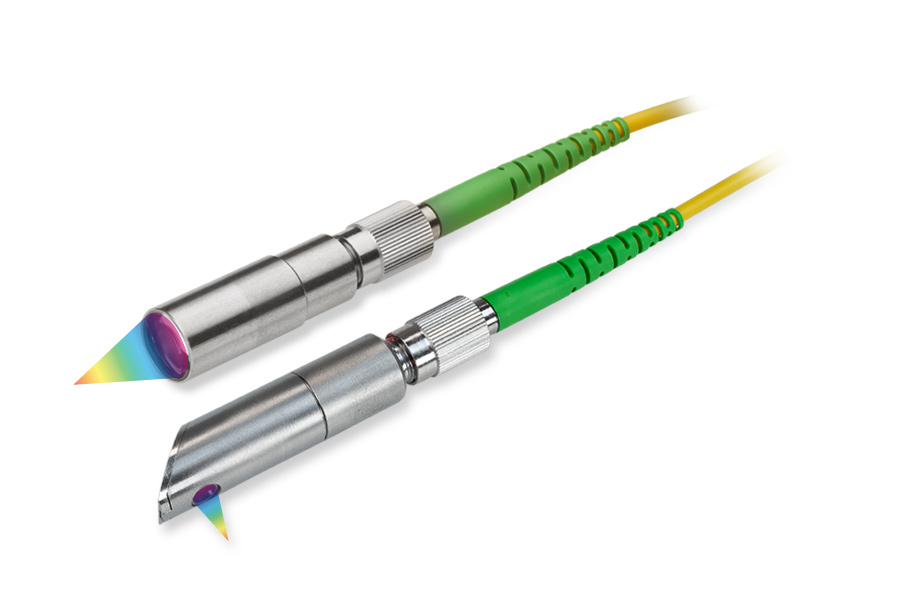

- For the 2 mm measuring range, a model with 90° beam path is available

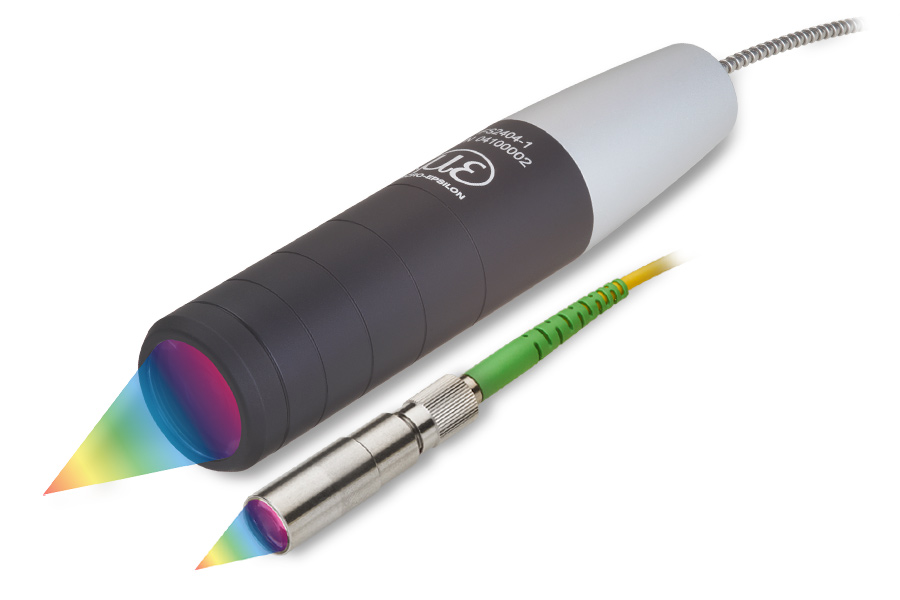

confocalDT IFS2404 - Compact sensors for series production
- Measuring ranges (mm): 1 | 3 | 6 | 18
- Linearity: max. < ±0.25 µm
- Resolution: max. < 6 nm
- For distance measurement and one-sided thickness measurement
- Ideal for series integration with large quantities
