wireSENSOR WPS-MK


Compact draw-wire sensors for industrial series applications

Analog and digital sensing elements

Ultra-compact designs for large measuring ranges

Draw-wire sensors for series integration and OEM applications

The miniature draw-wire sensors of the MK series feature a cost-optimized design and particularly compact dimensions. A wide selection of measuring ranges allows them to be flexibly integrated into a broad variety of applications.

Developed specifically for large series applications, these compact draw-wire sensors offer an ideal combination of attractive pricing, small size and low weight. This opens up new potential for cost and design optimization without compromising precision. The MK series is therefore the perfect solution for applications where cost-effectiveness and accuracy are equally important.

Get in touch with us!
Download now: catalogs, manuals, software
logo

Characteristics

  1. Measuring ranges (mm): 50 ... 7500
  2. Max. linearity ± 0.05 % FSO
  3. Wire accelerations up to: approx. 7g
  4. Telescopic measuring principle
  5. Cost-optimized
  6. Compact
[]
Contact
MICRO-EPSILON India Private Limited
+91 7410 018316
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

High-performance sensor technology for a wide range of applications

Draw-wire sensor used on a vehicle lift
The wireSENSOR WDS-2100-MK77 precisely measures the lifting height of a vehicle lift, allowing the current vehicle position to be reliably monitored.
Draw-wire sensor measures a laboratory fume hood opening
The wireSENSOR WDS-1000-MK46 continuously measures the position of the front sash and therefore the opening travel of the laboratory fume hood. Based on the sensor signal, the exhaust air volume flow is controlled as required so that the necessary face velocity remains constant and hazardous substances are safely contained in the fume hood.
Precise measurement of position and movement in surgical robots
The wireSENSOR WDS-500-MK30 precisely measures position and movement in medical surgical robots, supporting reliable and controlled operation of the robotic components.

Characteristics

Analog:

  • Measuring ranges: 50 | 150 | 250 | 500 | 750 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.1 % FSO
  • Output type: Potentiometer
  • Protection class: IP20
  • Resolution: virtually infinite

Digital:

  • Measuring ranges: 500 | 750 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.05 % FSO
  • Digital output: Encoder: E (5 … 24 VDC) / Encoder E830 (8 … 30 VDC)
  • Protection class: IP54
  • Resolution: 0.1 mm

Downloads

Datasheet wireSENSOR MK30
Setup guide wireSENSOR WPS MK30
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK series", STEP

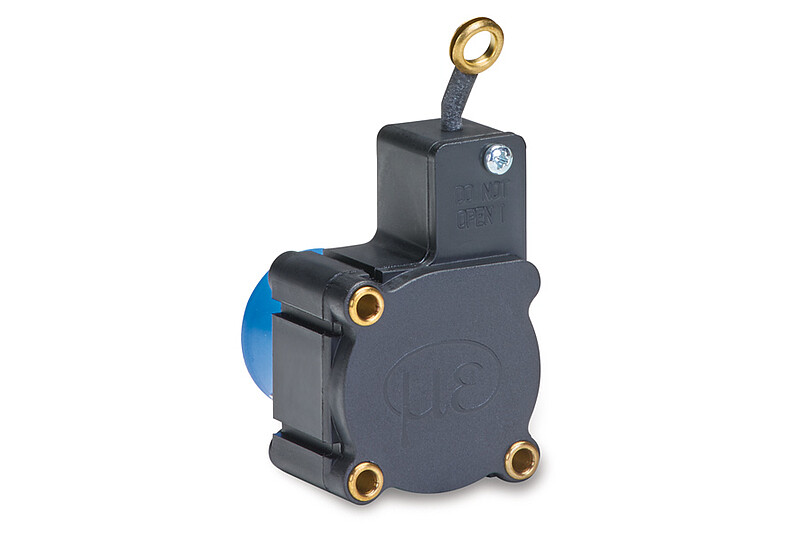

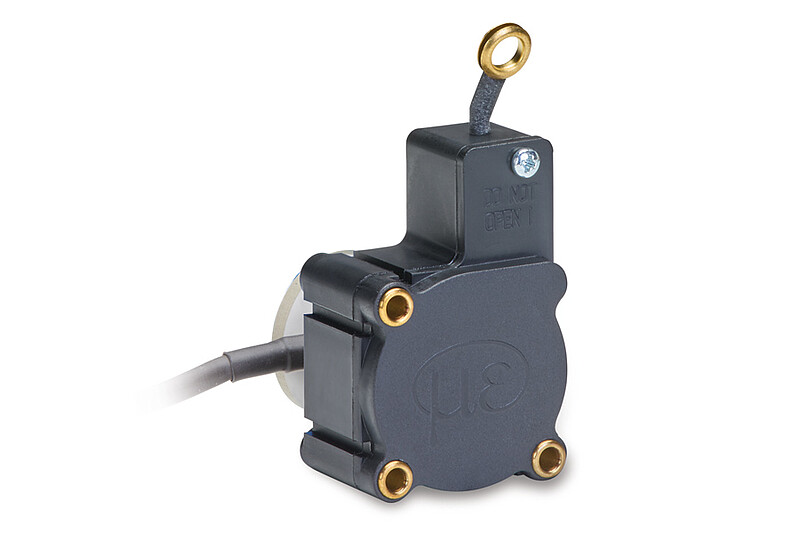

MK-30 draw-wire sensors

Characteristics

Analog:

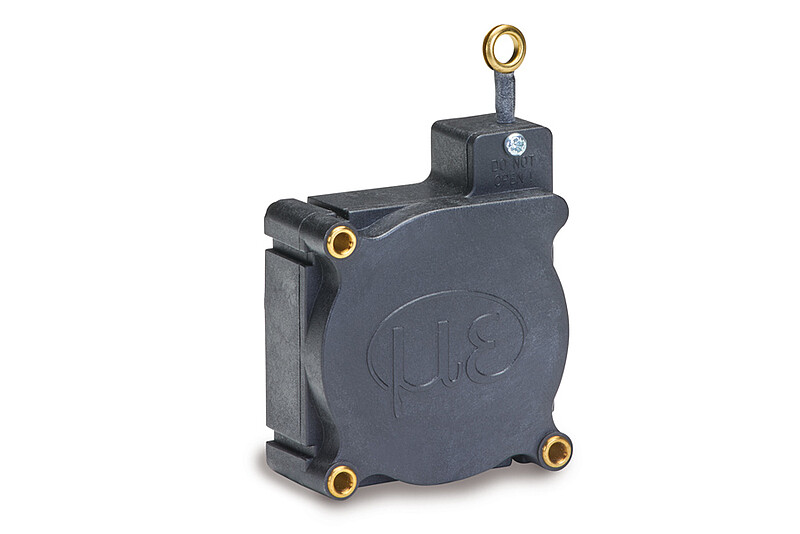

  • Measuring ranges: 1000 | 1250 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.1 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP20
  • Resolution: virtually infinite

Digital:

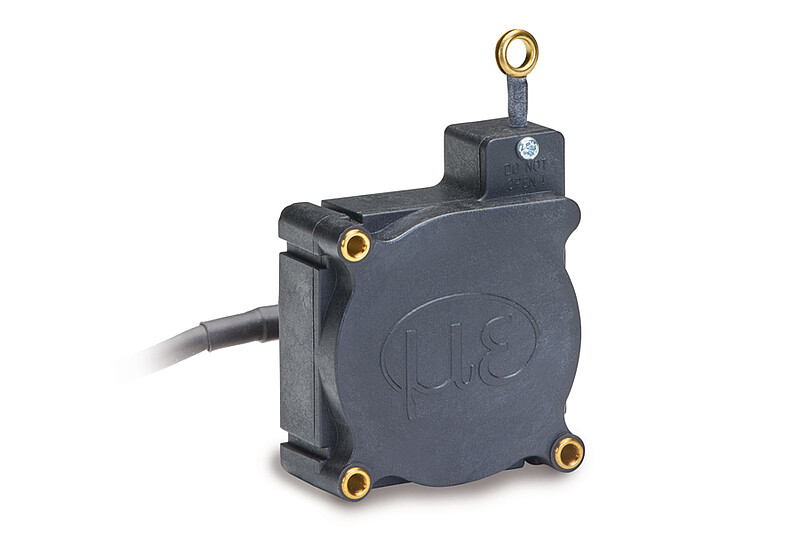

  • Measuring ranges: 1250 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.05 % FSO
  • Digital output: Encoder: E (5 … 24 VDC) / Encoder E830 (8 … 30 VDC)
  • Protection class: IP54
  • Resolution: 0.25 mm

Downloads

Datasheet wireSENSOR MK46
Setup guide wireSENSOR MK46
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK series", STEP

MK46 draw-wire sensors

Characteristics

Analog:

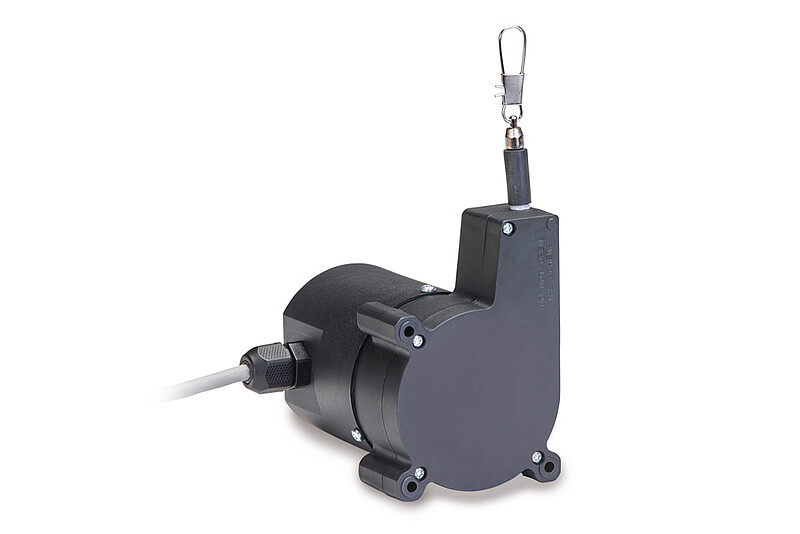

  • Measuring ranges: 1,500 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.15 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP65
  • Resolution: virtually infinite

Digital:

  • Measuring ranges: 2,400 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.05 % FSO
  • Digital output: TTL01 (A, B, 0) / TTL02 (A, A, B, B, 0)
  • Protection class: IP65
  • Resolution: 0.146 mm

Downloads

Datasheet wireSENSOR MK60
Setup guide wireSENSOR MK60
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK-60", STEP

MK60 draw-wire sensors

Characteristics

Analog:

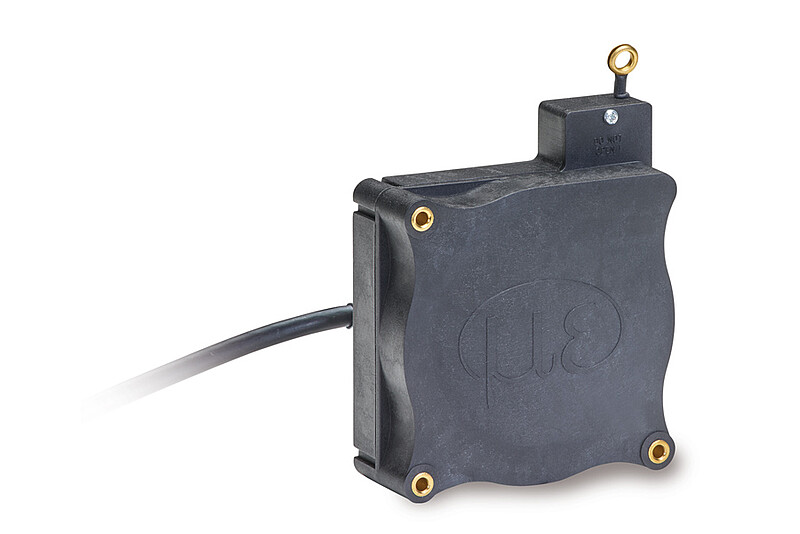

  • Measuring ranges: 2100 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.25 % FSO
  • Output type: Potentiometer
  • Protection class: IP20
  • Resolution: 0.55 mm

Digital:

  • Measuring ranges: 2100 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.05 % FSO
  • Digital output: Encoder: E (5 … 24 VDC) / Encoder E830 (8 … 30 VDC)
  • Protection class: IP54
  • Resolution: 0.43 mm

Downloads

Datasheet wireSENSOR MK77
Setup guide wireSENSOR WPS-MK77
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK series", STEP

MK77 draw-wire sensors

Characteristics

Analog:

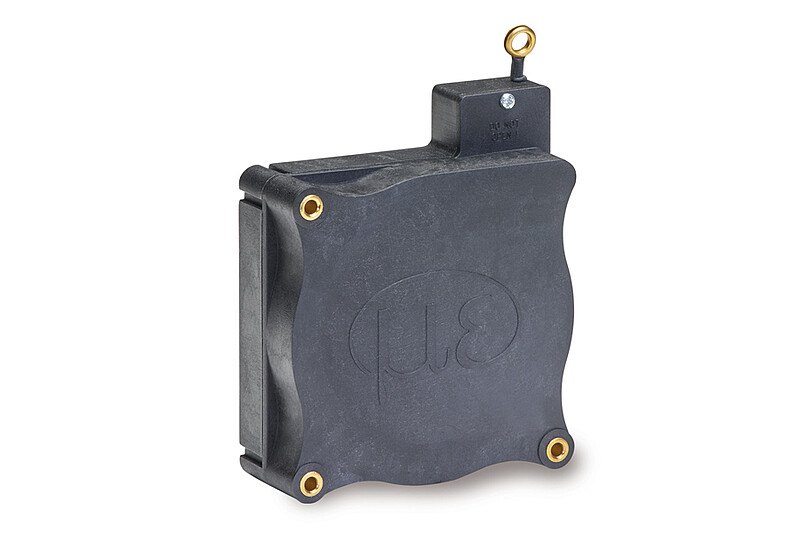

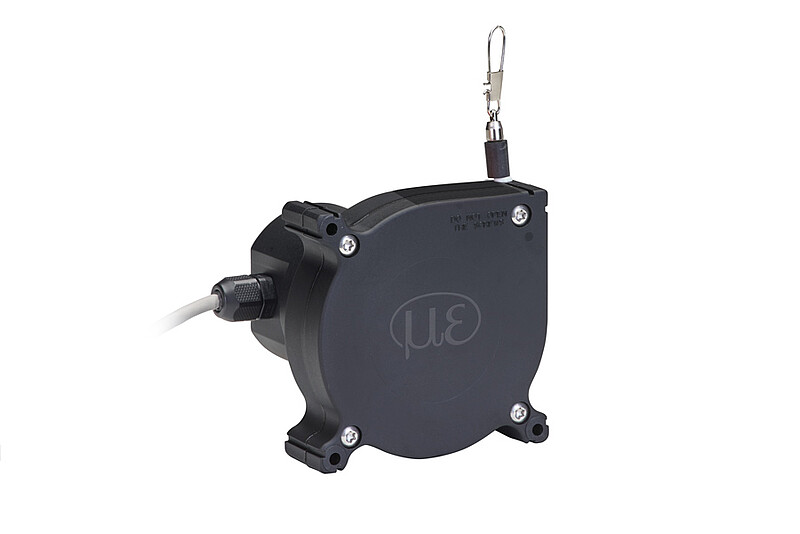

  • Measuring ranges: 2300 | 3500 | 5000 mm
  • Temperature range: -40 … +85 °C
  • Linearity: ≤ ±0.15 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP67
  • Resolution: virtually infinite

Digital:

  • Measuring ranges: 2300 | 3500 | 5000 mm
  • Temperature range: -40 … +85 °C
  • Linearity: ≤ ±0.15 % FSO
  • Digital interface: CANopen
  • Protection class: IP67
  • Resolution: 0.56 mm

Downloads

Datasheet wireSENSOR MK88
Setup guide wireSENSOR MK88
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK-88", STEP

MK88 draw-wire sensors

Special features

Analog:

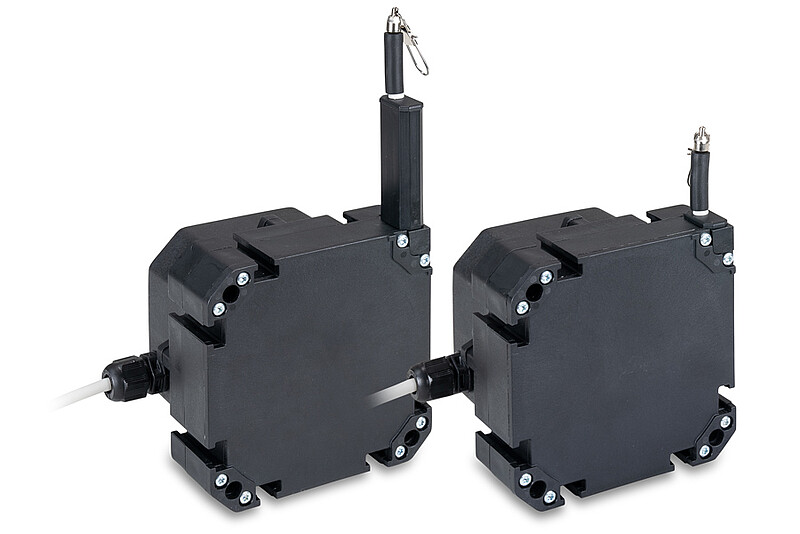

  • Measuring ranges: 3000 | 5000 | 7500 mm
  • Temperature range: -20 … +80 °C
  • Linearity: ≤ ±0.15 % FSO
  • Output type: Potentiometer, current, voltage
  • Protection class: IP65
  • Resolution: virtually infinite

Downloads

Datasheet wireSENSOR MK120
Setup guide wireSENSOR WPS MK120
Operating instructions wireSENSOR WPS
CAD files, 3D models "wireSENSOR WPS MK series", STEP

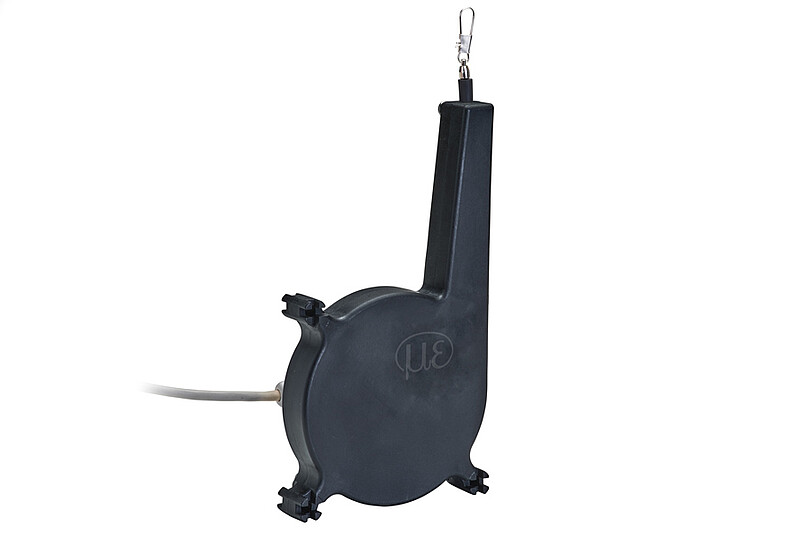

MK120 draw-wire sensors

Downloads
