Compact and reliable laser distance sensor
The optoNCDT ILR104x series laser distance sensors are designed for distance measurements from 0.03 to 150 m. The sensors feature a high protection class and resistance to ambient light. The ILR104x sensors can be commissioned quickly via the IO-Link interface. Due to their rotatable cable outlet and their compact design, these sensors can also be installed in difficult-to-access and narrow places.
Compact. Reliable. Versatile.
Special features

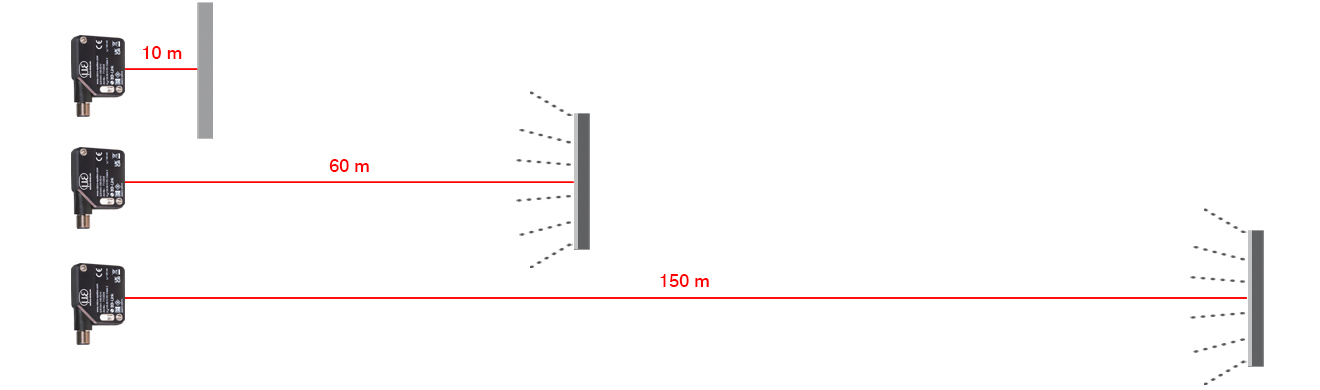

- Measuring range without reflector 10 m
- Measuring range with reflector 150 m
- Linearity ± 20 mm
- Resolution of 1 mm
- Ambient light resistance up to 50,000 lx
- Reliable and precise measurement on various surfaces
- Compact and robust IP69K housing
- Easy alignment to the target object
- Laser class 1
- IO-Link
NEW: Ultra-compact with large measuring range
The new optoNCDT ILR1041-150 enables precise distance measurements up to 150 m (with reflector) and combines high performance with IO-Link – ideal for demanding automation tasks and Industry 4.0 applications.
Versatile in use
IO-Link – the communication standard for automation technology
The ILR104x models feature an IO-Link interface. This allows the sensors to be commissioned quickly and easily.
