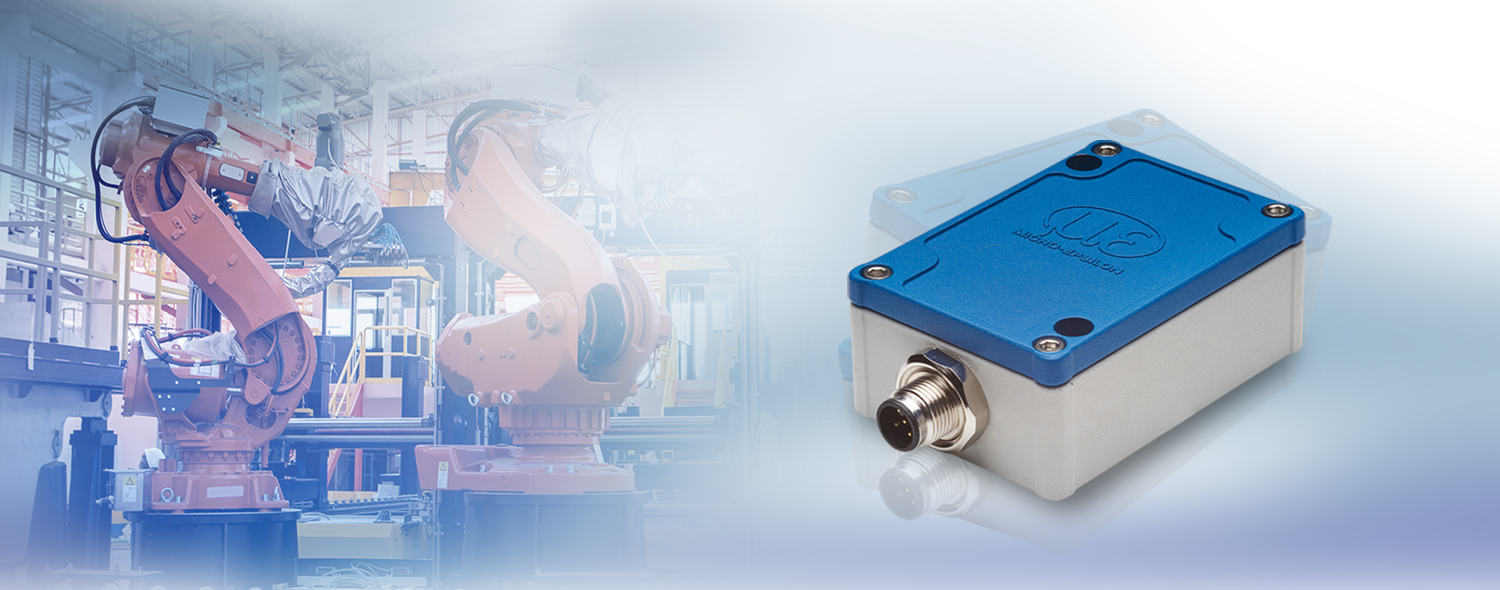

High precision inclination sensor with excellent angular accuracy
The INC5701 is a uniaxial inclination sensor that offers a measuring range up to 360°. Excellent resolution and angular accuracy make the inclination sensor ideally suitable for precise measurements in laboratory and industry such as the orientation of machine components. The industrial-grade aluminum die-cast housing enables applications in extremely harsh ambient conditions such as, e.g., in close proximity to electromagnetic fields. In addition, high temperature stability ensures reliable measurements in environments with strongly fluctuating temperatures which makes the sensor also ideally suitable for outdoor applications.
Characteristics
- Measuring range: 0 ... 360° (configurable)
- Excellent angular accuracy: digital ± 0.04°, analog ± 0.12°
- Extremely stable measurement signal even with strongly fluctuating temperatures
- High EMC resistance due to robust aluminum die-cast housing
- Analog (current / voltage) and digital interfaces RS485, Ethernet, PROFINET, EtherNet/IP
Easy commissioning

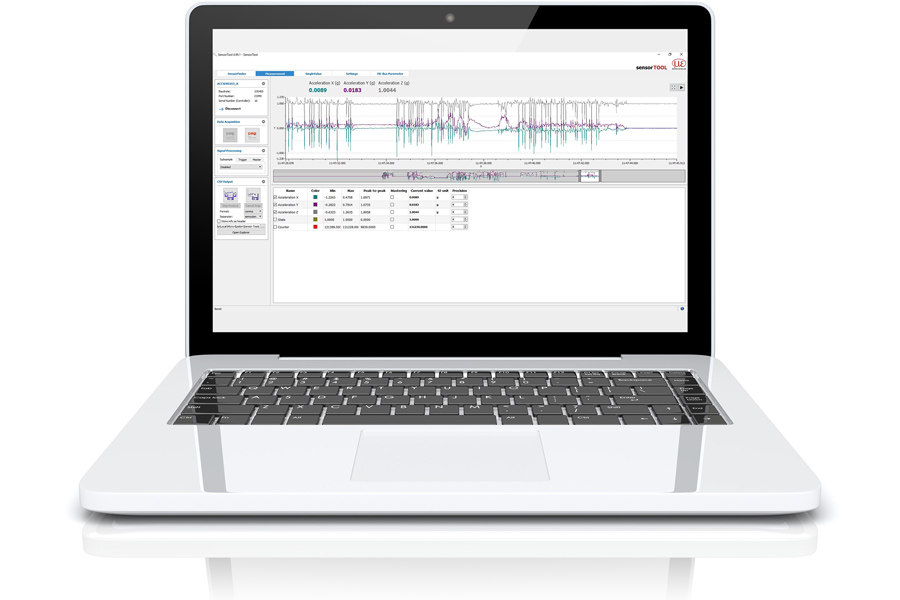

The free sensorTOOL configuration software offers simple setup and commissioning of the INC5701 inertialSENSOR. The sensorTOOL enables you to adjust parameters and to display the measures values.
