surfaceCONTROL 3D 3500

The new generation of high precision inline 3D measurements

The high-precision surfaceCONTROL 3D 3500 snapshot sensor  is used for automated optical inspection of geometry, shape and surfaces on diffusely reflecting surfaces. The surfaceCONTROL 3D 3500 is characterized by its compact design and high measurement accuracy combined with high speed data processing. With a z-axis repeatability of up to 0.4 µm, the sensor sets new standards in high-precision inline 3D measurement technology. It reliably detects the smallest flatness deviations and height differences. Two models cover different measuring fields.

logo

Characteristics

  1. Micrometer-accurate snapshots with large measuring fields
  2. Fast 3D measurement from 0.2 s
  3. Highest precision up to 0.25 μm
  4. Digital interfaces (integrated): GigE Vision / GenICam
  5. Slim and compact sensor design
  6. Up to 2.2 million 3D points/second
  7. Digital interfaces (via 2D/3D Gateway): PROFINET / EtherCAT / EtherNet/IP*
  8. Digital in-/outputs: 4 digital I/Os for which parameters can be set (for external trigger, sensor control, output of sensor states)
[]
Contact
MICRO-EPSILON India Private Limited
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

* Evaluations from 3DInspect can be transmitted to a PLC via these fieldbuses. Sensor settings can be loaded by a controller via 3DInspect using parameter set mapping.

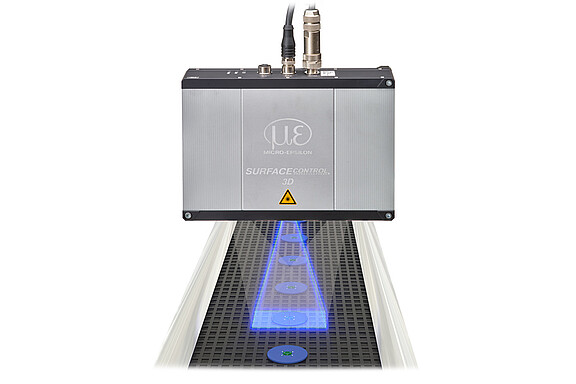

The new generation of 3D measurements

In addition to the fast data output via Gigabit Ethernet, the sensor offers an additional digital I/O interface. The 2D/3D Gateway II supports EtherNet/IP, PROFINET and EtherCAT connections. Powerful software tools enable precise 3D measurements and surface inspections. GigE Vision compatibility also allows easy integration into third-party image processing software. The comprehensive SDK for customer software integration rounds off the software package.

Application examples:

  • 3D geometry inspection and form detection
  • Inspection of form, position and surface
  • Defect detection
  • 3D text recognition and detection of finest structures
  • Inspection of electronic components

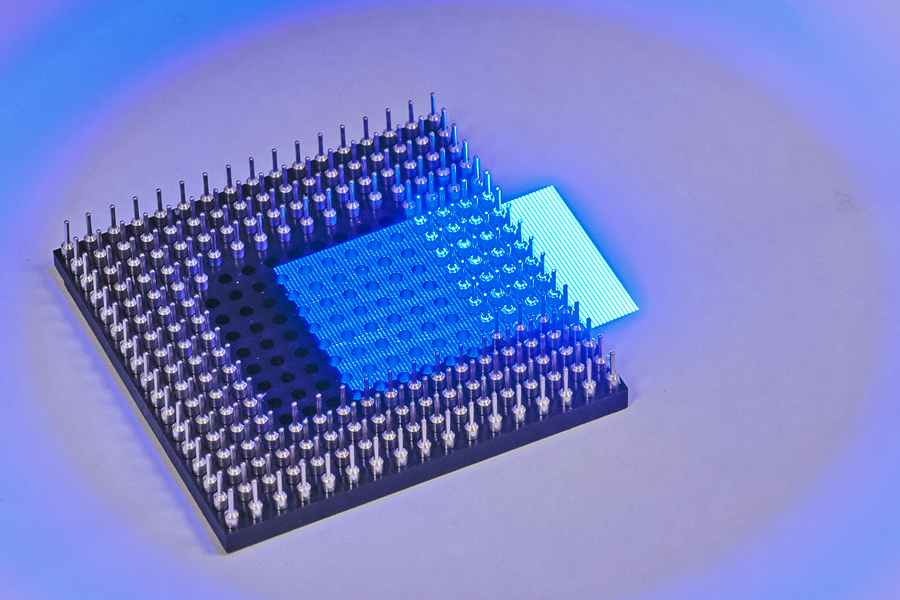

High-precision 3D sensor for the smallest measuring objects

With its small measurement area of 30 x 18,5 mm, the surfaceCONTROL 35x0-30 detects even the finest 3D and surface structures with utmost precision and reliability. Its high z-axis resolution and the precise repeatability make the 3D sensor the most precise on the 3D snapshot sensor market. In addition, the measuring objects are detected at a working distance of 130 mm. The high XY resolution from 16 µm allows even more precise detection of finest details.

240 mm larger measuring range with excellent precision in Z

With a measurement area of up to 245 x 180 mm, the surfaceCONTROL 35x0-240 captures structures and details on larger targets with high precision. Due to their high z-axis measuring range of 240 mm, the sensors are ideal for applications with large measuring volumes. The high z-axis resolution of 5 µm in combination with the larger measuring range enables maximum precision for a wide range of applications, e.g. for testing bipolar plates for fuel cells.

3DInspect software for 3D measurement tasks and inspection

The 3DInspect software is a powerful tool for sensor parameter set up and industrial measurement tasks. This software transmits the measurement data from the sensor via Ethernet and provides the data in three-dimensional form. This 3D data is further processed, evaluated and assessed with 3DInspect measuring programs on the PC and, if necessary, logged and transmitted via Ethernet to a control unit. If required, these 3D data can be saved with the software. Furthermore, the set up and configuration of the sensor is possible via the software. For connection to an automation interface, the functional extension 3DInspect Automation is enabled with use of the SC3510 sensors, which also includes comprehensive data logging.
