Fully automatic measurement of sheet metal

Dimensionics developed the Disionic Sheet Control measuring table for fully automatic testing of the dimensional accuracy of sheet metal. It operates with laser profile sensors by Micro-Epsilon. The sensors measure sheet metal blanks and check them for width, length, angle, straightness, deflection (convex/concave), and the planarity of the sheet metal edges.

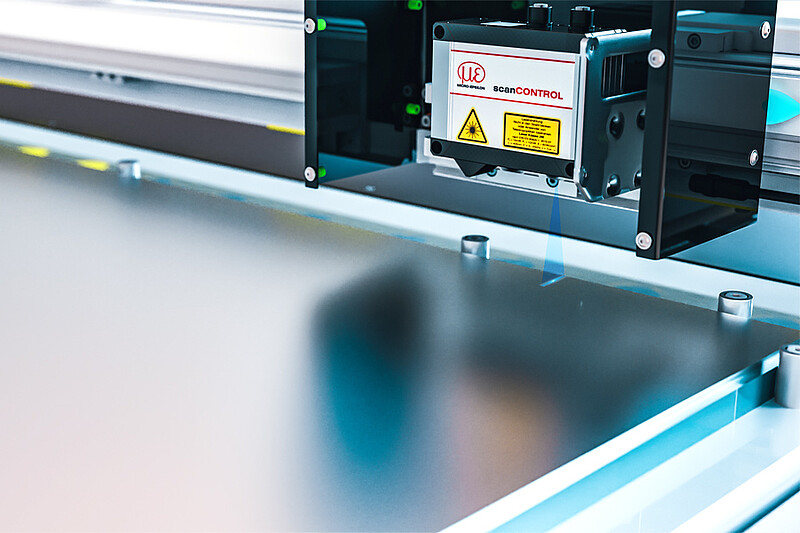

Two scanCONTROL 3000 laser profile scanners are mounted on the XY table. Each scanner has a measuring range of 25 mm and is guided over two edges in the X or Y direction of the sheets. The Blue Laser technology ensures the sensors achieve maximum precision and reliable results on demanding metallic surfaces.
